Inspection Using An Oscilloscope (Reference)
>>

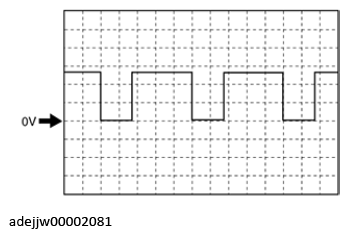

A/F sensor heater control signal
A/F sensor heater control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
1CB (+) - body ground (-)
Oscilloscope setting
5 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
Courtesy of MAZDA MOTORS CORP.
