Power System Location Index [(Us)]

G13179896Courtesy of MAZDA MOTORS CORP.

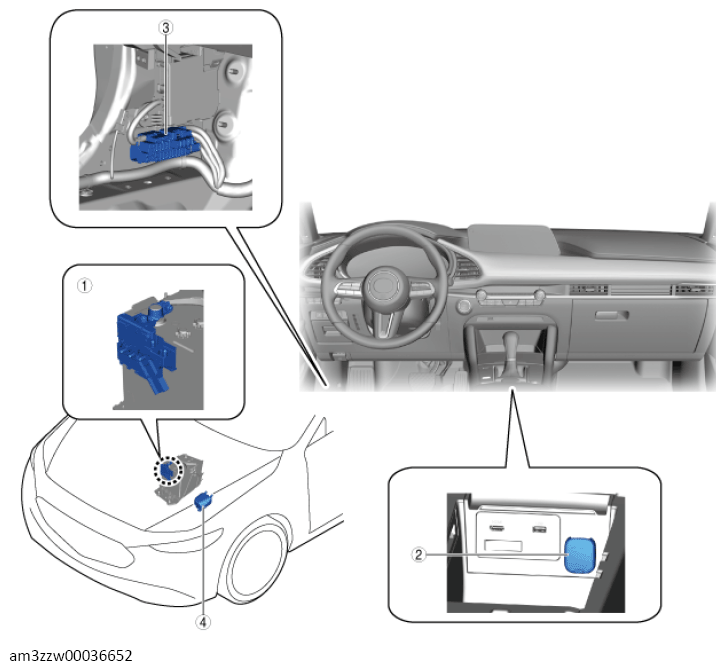

COMPONENT DESCRIPTION

1 Main fuse
(See MAIN FUSE REMOVAL/INSTALLATION [(US)] .)
2 Center accessory socket
(See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See CENTER ACCESSORY SOCKET INSPECTION .)
3 Fuse block
(See FUSE BLOCK REMOVAL/INSTALLATION .)
(See FUSE SERVICE CAUTIONS .)
4 Relay and fuse block
(See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
(See FUSE SERVICE CAUTIONS .)
(See RELAY LOCATION [(US)] .)
(See RELAY INSPECTION .)
