Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.

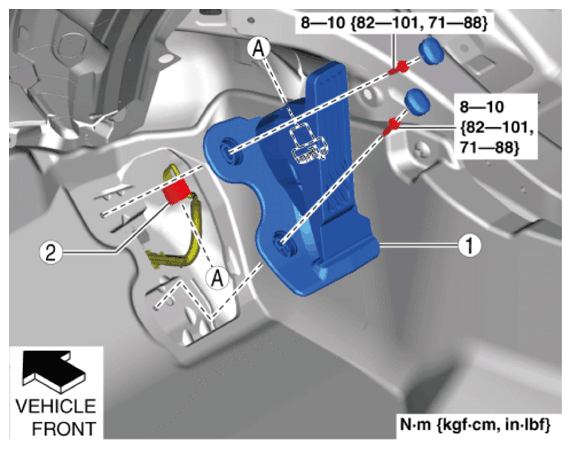

Fig 1: Identifying APP Sensor Connector, Accelerator Pedal And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Accelerator pedal

2 APP sensor connector
Install in the reverse order of removal.

1	Accelerator pedal
2	APP sensor connector
