Exhaust System Insulator Removal/Installation

1. Remove the shift.
2. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION ).
3. Remove the power plant frame. (See POWER PLANT FRAME REMOVAL/INSTALLATION ). (See POWER PLANT FRAME REMOVAL ). (See POWER PLANT FRAME INSTALLATION ).
4. Remove the exhaust system insulator in the order shown in the figure below.
5. Install in the reverse order of removal.

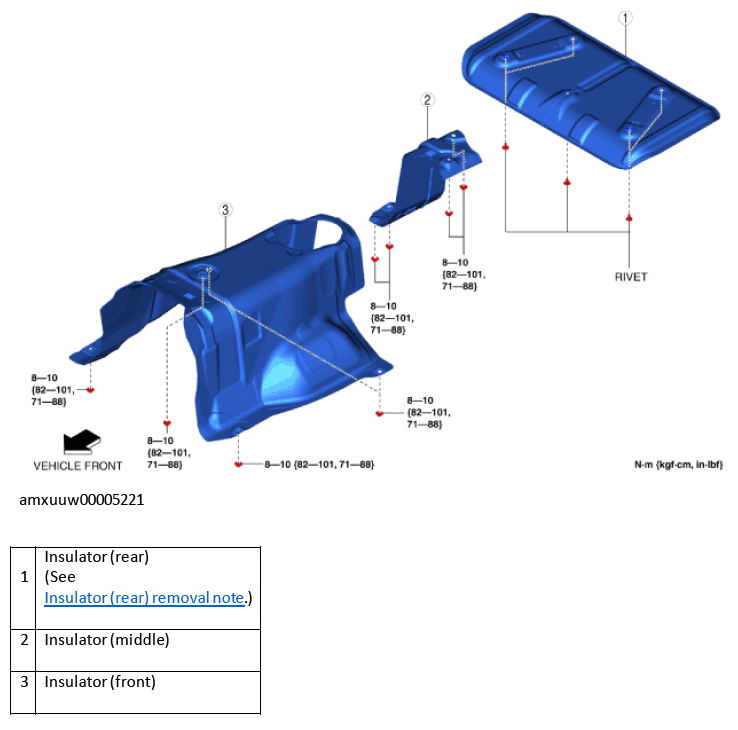

Fig 1: Exploded View Of Exhaust System Insulator With Torque Specification

Courtesy of MAZDA MOTORS CORP.
