TCM Removal/Installation

CAUTION:

Do not drop or apply a shock to the TCM. Replace the TCM if it has been dropped or received an impact.
Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Disconnect the connectors.

Fig 1: Identifying TCM Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the TCM.

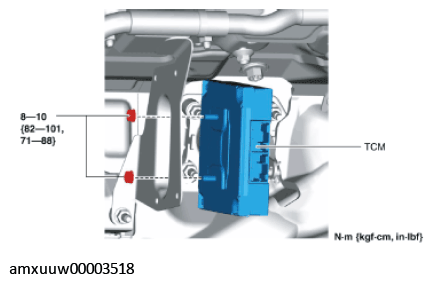

Fig 2: Identifying TCM And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of Removal.
Perform the "Initial Learning" (TCM replacement). (See INITIAL LEARNING PROCEDURE ).
