Inspection Using An Oscilloscope (Reference)

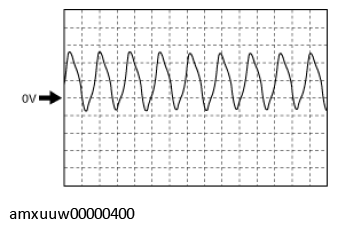

Turbine sensor (+)

• TCM terminal: 1A

• Oscilloscope setting: 2 V/DIV (Y) 2 ms/DIV (X)
• Measuring condition: Vehicle speed at 30 km/h {19 mph}(D position 1GR)

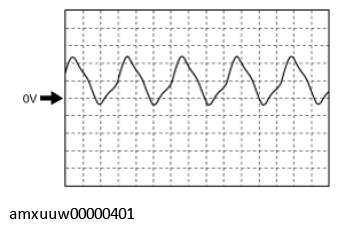

Vehicle speed (+)

• TCM terminal: 1D

• Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
• Measuring condition: Vehicle speed at30 km/h {19 mph}(D position 1GR)

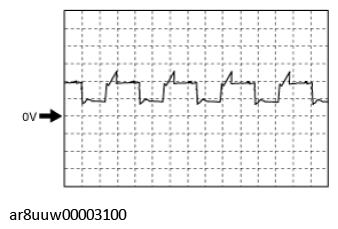

TCC control solenoid control (-)

• TCM terminal: 2D

• Oscilloscope setting: 50 mV/DIV (Y) 1 ms/DIV (X)
• Measuring condition: P, N position, Idle

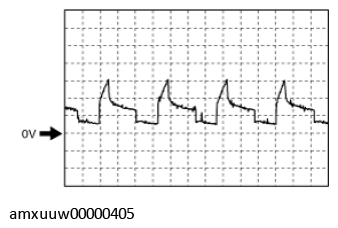

Shift solenoid G control (-)

• TCM terminal: 2L

• Oscilloscope setting: 50 mV/DIV (Y) 1ms/DIV (X)
• Measuring condition: M position 1GR

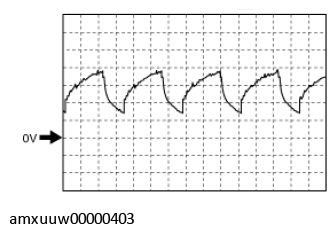

Shift solenoid F control (-)

• TCM terminal: 2O

• Oscilloscope setting: 100 mV/DIV (Y) 1 ms/DIV (X)
• Measuring condition: M position 5GR

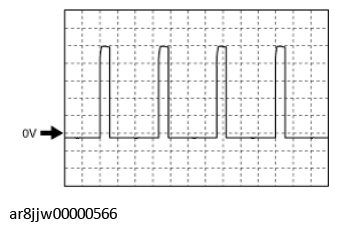

TCC control solenoid control (+)

• TCM terminal: 2Q

• Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
• Measuring condition: P, N position, Idle

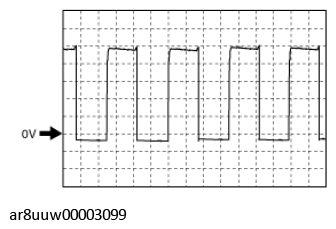

Line pressure control solenoid control (+)

• TCM terminal: 2R

• Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
• Measuring condition: P, N position, Idle

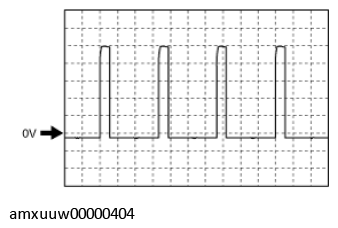

Shift solenoid G control (+)

• TCM terminal: 2Y

• Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
• Measuring condition: M position 1GR

Shift solenoid F control (+)

• TCM terminal: 2Z

• Oscilloscope setting: 2.5 V/DIV (Y) 1 ms/DIV (X)
• Measuring condition: M position 5GR
