On-Board Diagnostic - SAS Control Module - Two-Step Deployment Control System
>>
On-Board Diagnostic Wiring Diagram (SAS Control Module (Two-Step Deployment Control System))
On-Board Diagnostic Wiring Diagram (SAS Control Module (Two-Step Deployment Control System))

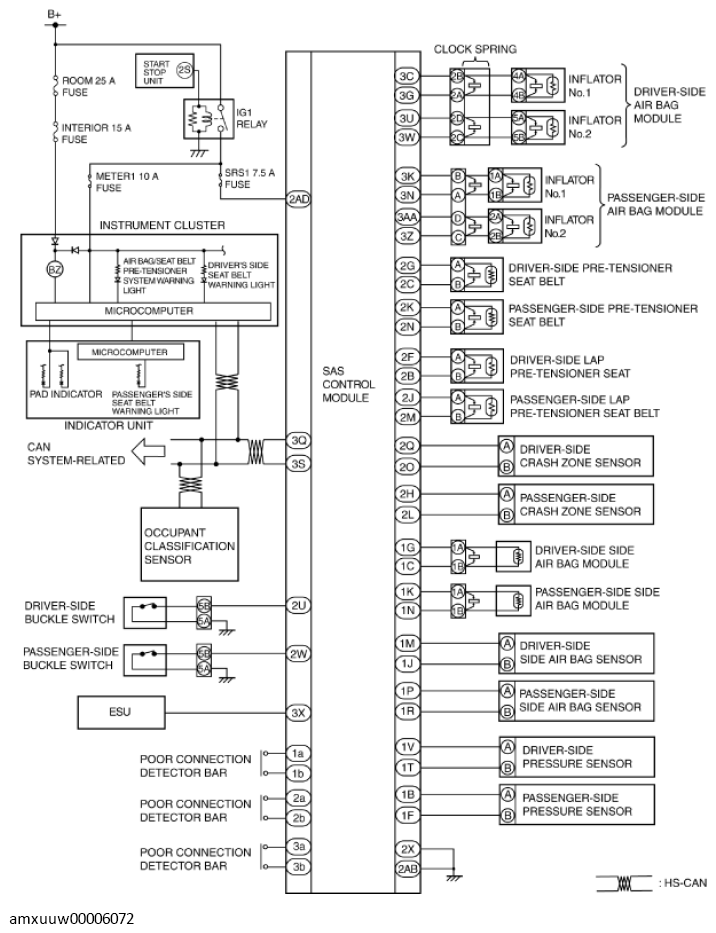

Fig 1: SAS Control Module - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.

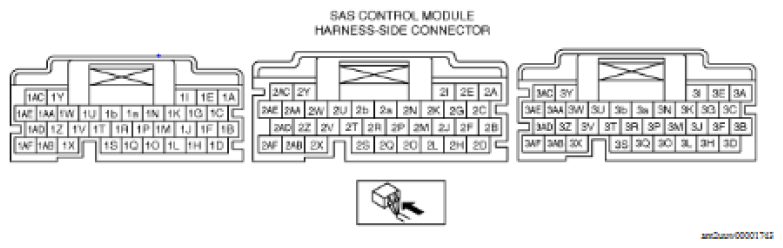

Fig 2: Identifying SAS Control Module Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
