On-Board Diagnostic Wiring Diagram (SAS Control Module (Standard Deployment Control System))

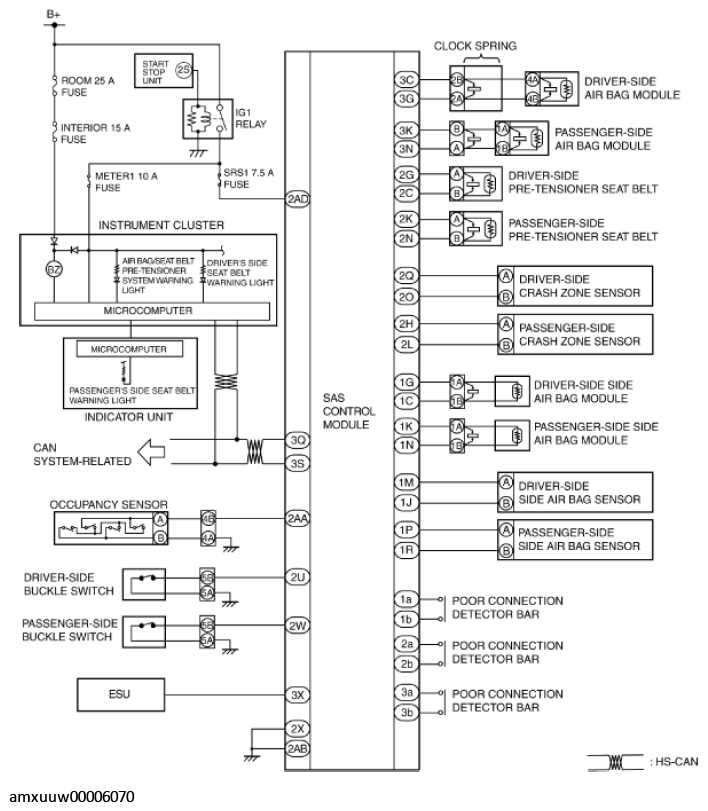

Fig 1: SAS Control Module - Wiring Diagram

Courtesy of MAZDA MOTORS CORP.

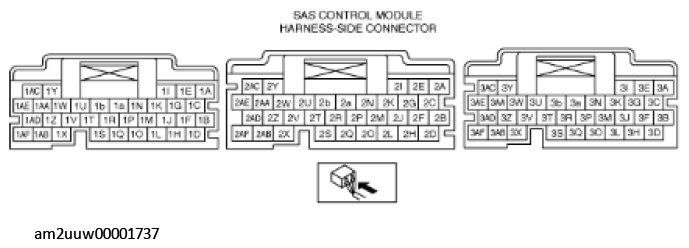

Fig 2: Identifying SAS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
