No. 1 Blown Fuses

1

BLOWN FUSES

(TROUBLESHOOTING HINTS)

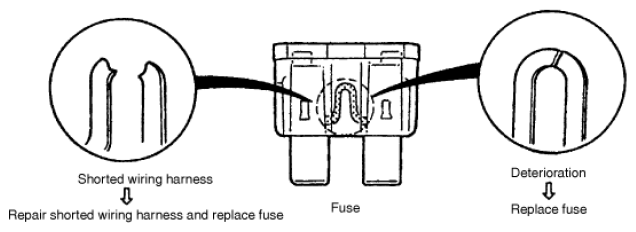

Inspect condition of fuse.

G11276107

Courtesy of MAZDA MOTORS CORP.

Damaged fuse

Related wiring harness

MAIN

FAN1 fuse
FUEL PUMP fuse
IG2 fuse
ENG+B2 fuse
ROOM fuse
ENG. MAIN fuse
INJECTOR fuse
EVVT fuse
IG1 relay

FAN1

Cooling fan relay

ENG IG1

Fuel pump relay
PCM

FUEL PUMP

Fuel pump relay

STR/ALT

Generator
Starter

IG2

ACC relay
Starter relay

ENG+B2

DLC-2

ROOM

ENG+B fuse

ENG+B

PCM

ENG. MAIN

Main relay

INJECTOR

Fuel injector relay

EVVT

Electric variable valve timing relay

ENGINE1

Electric variable valve timing relay
A/F sensor
HO2S
MAF sensor/IAT sensor No. 1
Intake CMP sensor
CV solenoid valve ⁽¹⁾¹

ENGINE2

Fuel injector relay
Purge solenoid valve
OCV
PCM
Engine oil solenoid valve
Exhaust CMP sensor
Ignition coil/ion sensor No. 1
Ignition coil/ion sensor No. 2
Ignition coil/ion sensor No. 3
Ignition coil/ion sensor No. 4

ENGINE3

Cooling fan relay

⁽¹⁾	U.S.A. and CANADA
