Engine Mount (RH): Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the bolt shown in the figure below and set the ground cable aside.
    Fig 1: Ground Cable Bolt With Torque Specification
    G11275771Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (RH). (See GENERAL PROCEDURES (SUSPENSION) ).
  4. Remove the fasteners shown in the figure below and slightly bend back the front mudguard No. 2 (RH).
    Fig 2: Identifying Front Mudguard No. 2 And Fasteners
    G11275772Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (RH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION) .
  6. Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION ).
  7. Remove in the order indicated in the figure below.
  8. Install in the reverse order of removal.

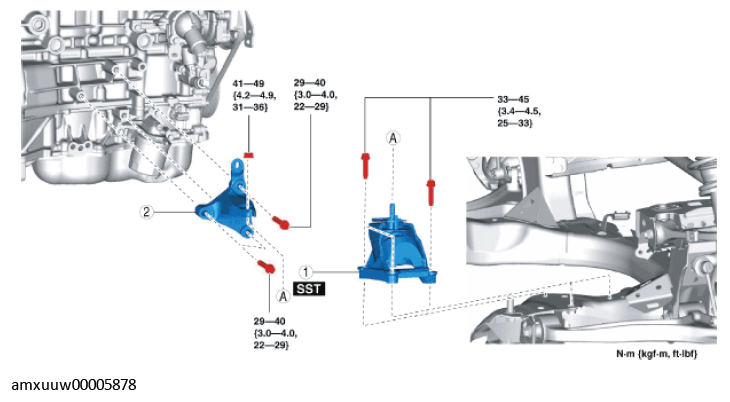

Fig 3: Removing Engine Mount Rubber (RH) And Engine Mount Bracket (RH) With Torque Specifications
G11275773Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Engine mount rubber (RH)
(See Engine mount rubber (RH) removal note .)
(See Engine mount rubber (RH) installation note .)
2 Engine mount bracket (RH)
