Engine Mount (LH): Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the bolt shown in the figure below and set the ground cable aside.
    Fig 1: Ground Cable Bolt With Torque Specification
    G11275771Courtesy of MAZDA MOTORS CORP.
  3. Remove the front wheels and tires (LH). (See GENERAL PROCEDURES (SUSPENSION)) .
  4. Remove the fasteners shown in the figure below and slightly bend back the front mudguard No. 2 (LH).
    Fig 2: Identifying Front Mudguard No. 2 And Fasteners
    G11275781Courtesy of MAZDA MOTORS CORP.
  5. Remove the front splash shield No. 1 (LH). (See FRONT SPLASH SHIELD No. 1 REMOVAL/INSTALLATION) .
  6. Remove in the order indicated in the figure below.
  7. Install in the reverse order of removal.

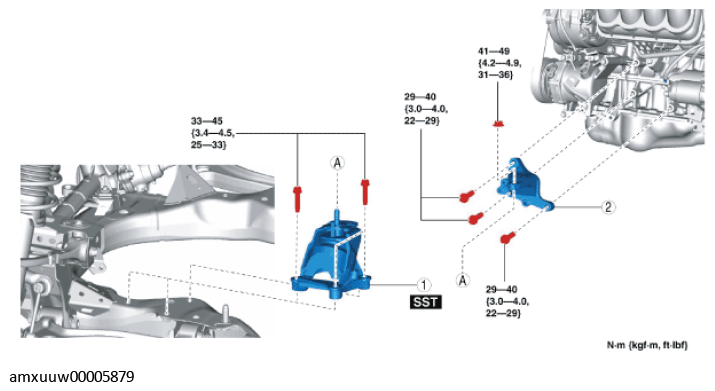

Fig 3: Removing Engine Mount Rubber And Engine Mount Bracket With Nuts And Bolts With Torque Specifications
G11275782Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Engine mount rubber (LH)
(See Engine mount rubber (LH) removal note .)
(See Engine mount rubber (LH) installation note .)
2 Engine mount bracket (LH)
(See Engine mount bracket (LH) removal note .)
(See Engine mount bracket (LH) installation Note .)
