Rear Window Glass Installation Note

Install the shim according to the number verified prior to removal.
Install the rear window glass with the alignment marks aligned.
Perform the retractable fastback adjustment. (See RETRACTABLE FASTBACK ADJUSTMENT ).
1. Using the retractable fastback switch, keep the front roof half-open.

  Fig 1: Identifying Rear And Front Roofs
  Courtesy of MAZDA MOTORS CORP.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
3. Disconnect the connector.

  Fig 2: Identifying Rear Window Glass Connector
  Courtesy of MAZDA MOTORS CORP.
4. Remove the caps.

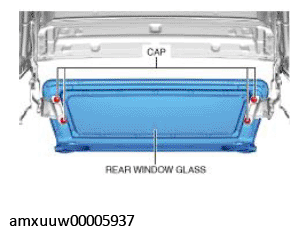

  Fig 3: Identifying Rear Window Glass Caps
  Courtesy of MAZDA MOTORS CORP.
5. Place alignment marks on the rear window glass and rear window glass installation nut.
  NOTE:
  - If the rear window glass is to be used, positioning and adjustment during installation will be easier by placing marks for the installation before removal.
  NOTE:
  - Placing marks is not necessary if the rear window glass is to be replaced with a new one because there will be no marked positions.
6. Remove the nuts and washers.

  Fig 4: Identifying Rear Window Glass Nuts With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
7. Remove the shims.
8. Remove the rear window glass.
9. Install in the reverse order of removal. (See REAR WINDOW GLASS INSTALLATION NOTE )

Install the shim according to the number verified prior to removal.
Install the rear window glass with the alignment marks aligned.
Perform the retractable fastback adjustment. (See)
