Outer Mirror Glass Installation

To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

Fig 1: Installing Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F}deform it.

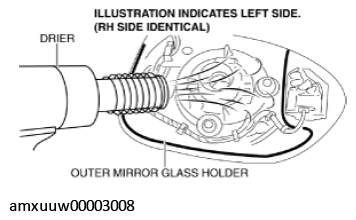

Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} using a drier.

Fig 2: Heating Outer Mirror Glass Holder Using Drier
Courtesy of MAZDA MOTORS CORP.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 3: Identifying Outer Mirror Protective Tape
Courtesy of MAZDA MOTORS CORP.
Connect the auto-dimming outer mirror connector. (with auto-dimming outer mirror)

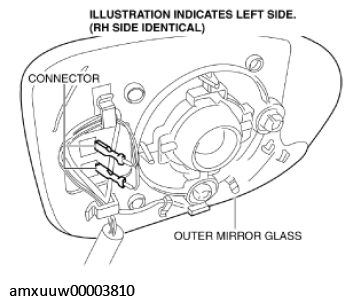

Connect the connectors (with heated outer mirror).

Fig 4: Identifying Outer Mirror Glass Connectors
Courtesy of MAZDA MOTORS CORP.

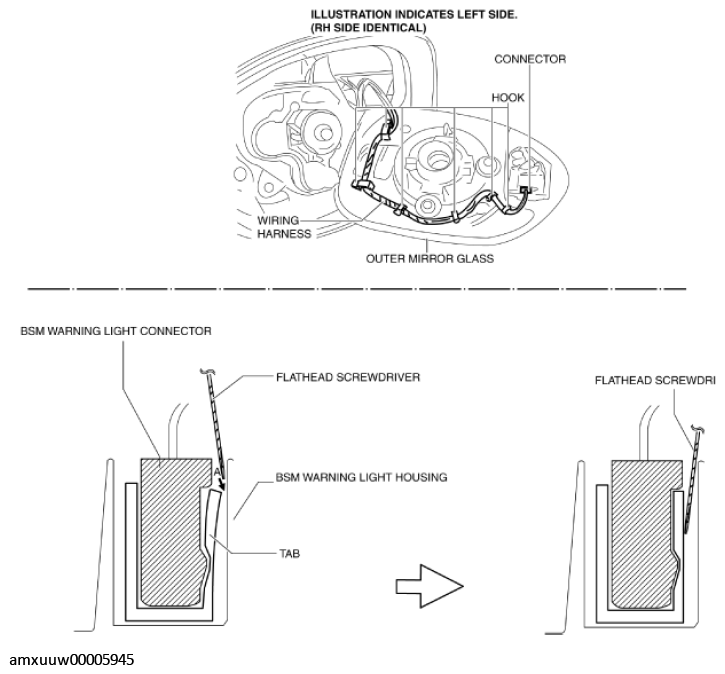

Connect the connector (with blind spot monitoring (BSM) system).

Fig 5: Connecting Blind Spot Monitoring System Connector Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Install the wiring harness for hooks.

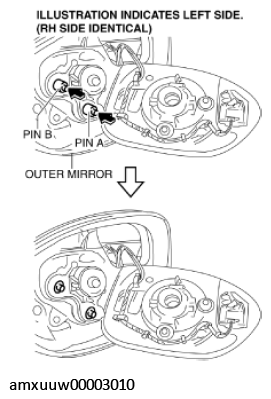

Press in outer mirror pin A and B in the direction of arrows shown in the figure.

Fig 6: Pressing Outer Mirror Pins
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.

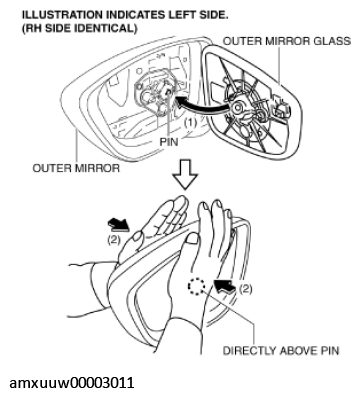

Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrow (2), install pin.

Fig 7: Pressing Outer Mirror Pins
Courtesy of MAZDA MOTORS CORP.

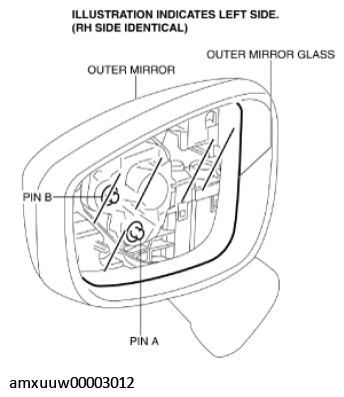

Install pin A and B in the same way as in Step 6.

Fig 8: Identifying Outer Mirror, Outer Mirror Glass And Pins (A/B)
Courtesy of MAZDA MOTORS CORP.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
