No. 3 Engine Mount: Notes

CAUTION:

Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See Plug Hole Plate Removal/Installation .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

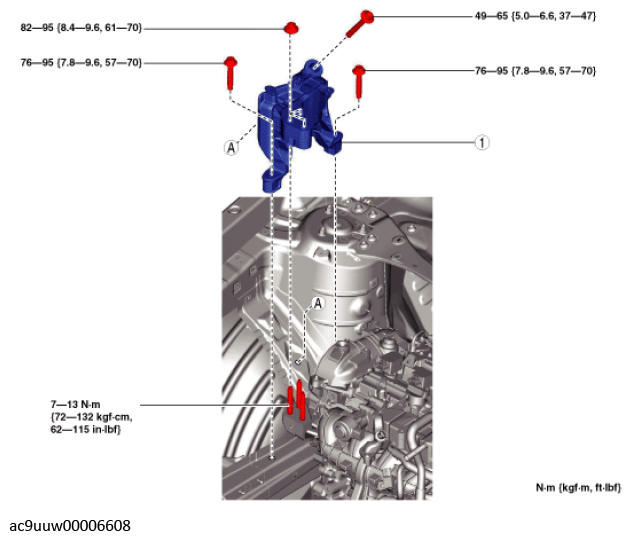

Fig 1: No. 3 Engine Mount And Bolts With Torque Specification

G12243934

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 3 engine mount (See No. 3 engine mount removal note .) (See No. 3 engine mount installation note .)
