Home >> Mazda >> 2018 >> CX-9 Touring, FWD >> Repair and Diagnosis >> Electrical >> Horns >> Instrumentation/Driver Info >> Active Driving Display Removal/Installation >> Active Driving Display Installation Note

Active Driving Display Installation Note

  1. Install the screws in the order of (1), (2), (3), and (4).

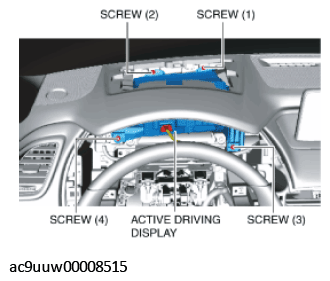

    Fig 1: Active Driving Display And Screws Tightening Sequence
    G11434792Courtesy of MAZDA MOTORS CORP.
