Switch Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)
  3. Verify that the resistance between the TCS OFF switch terminals D and E is as indicated in the table.
    • If not as indicated in the table, replace the TCS OFF switch.

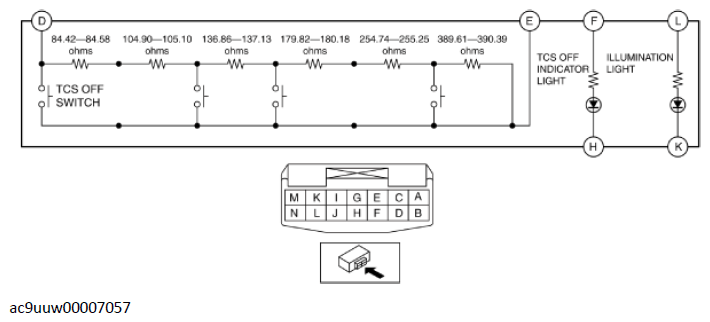

Fig 1: TCS OFF Switch Connector Terminals And Connector End View
G11433134Courtesy of MAZDA MOTORS CORP.
