No. 3 Engine Mount Installation Note

NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    Fig 1: Engine Front Cover Stud Bolts
    G11436644Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}

  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:
    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.

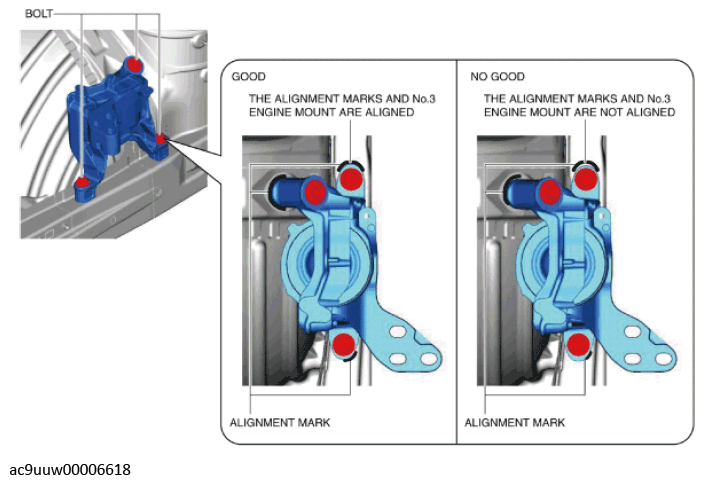

      Fig 2: Aligning Alignment Marks On Body Side And No 3 Engine Mount
      G11436645Courtesy of MAZDA MOTORS CORP.
    2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.

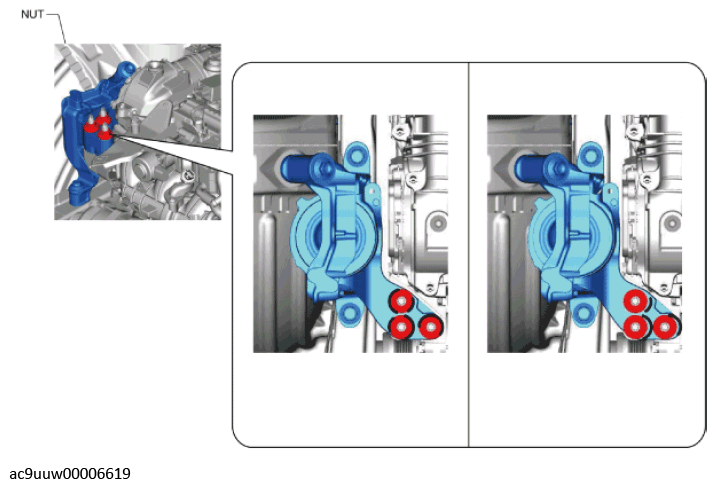

      Fig 3: Aligning Alignment Marks Of No 3 Engine Mount And Nuts
      G11436646Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.
  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 4: Engine Mount Installation Bolts And Nuts Tightening Sequence
    G11436647Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATION

    No. Tightening Torque
    1 76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
    2 82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
    3 49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}
  4. Remove the engine lifter or garage jack.
  5. Connect the ground cable clips shown in the figure.
    Fig 5: No. 3 Engine Mount, Clip And Ground Cable
    G11436587Courtesy of MAZDA MOTORS CORP.
  6. Install the wiring harness bracket shown in the figure.

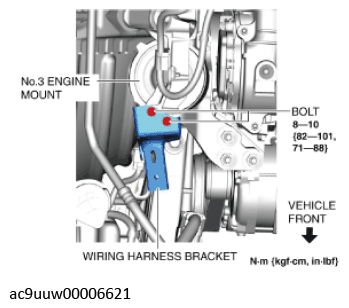

    Fig 6: No. 3 Engine Mount And Wiring Harness Bracket Bolts With Torque Specification
    G11436649Courtesy of MAZDA MOTORS CORP.
  7. Connect the clip shown in the figure.

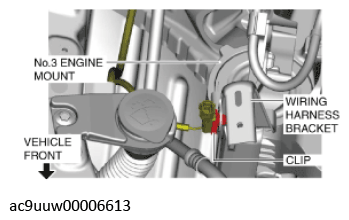

    Fig 7: Wiring Harness Bracket, Engine Mount And Clip
    G11436639Courtesy of MAZDA MOTORS CORP.
  8. Return the cooler hose that was set aside to its original position and tighten the nut.

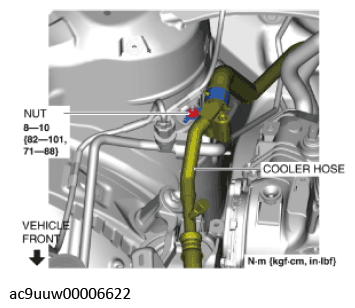

    Fig 8: Cooler Hose And Nut With Torque Specification
    G11436651Courtesy of MAZDA MOTORS CORP.
  9. Install the PCM component using the following procedure:
    1. Return the PCM component that was set aside to its original position.
    2. Temporarily tighten the bolt shown in the figure.

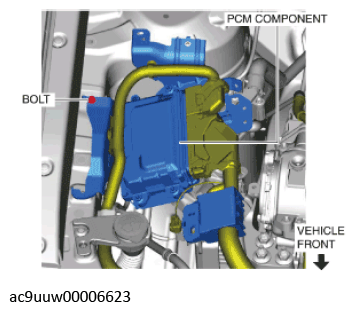

      Fig 9: PCM Component And Bolt
      G11436652Courtesy of MAZDA MOTORS CORP.
    3. Tighten the PCM component installation bolts in the order shown in the figure.

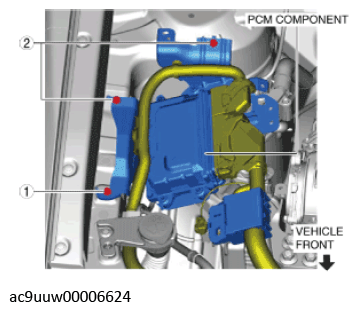

      Fig 10: PCM Component Installation Bolts Tightening Sequence
      G11436653Courtesy of MAZDA MOTORS CORP.

      Tightening torque

      9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}

    4. Install the wiring harness protector and connector.

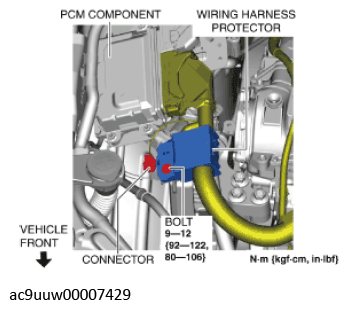

      Fig 11: PCM Component, Wiring Harness Protector, Connector And Bolts With Torque Specification
      G11436654Courtesy of MAZDA MOTORS CORP.
  10. Install the ground cable shown in the figure.

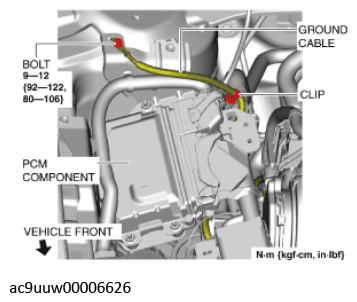

    Fig 12: PCM Component, Ground Cable, Clip And Bolt With Torque Specification
    G11436655Courtesy of MAZDA MOTORS CORP.
