Front Door Trim Disassembly/Assembly: Driver-side

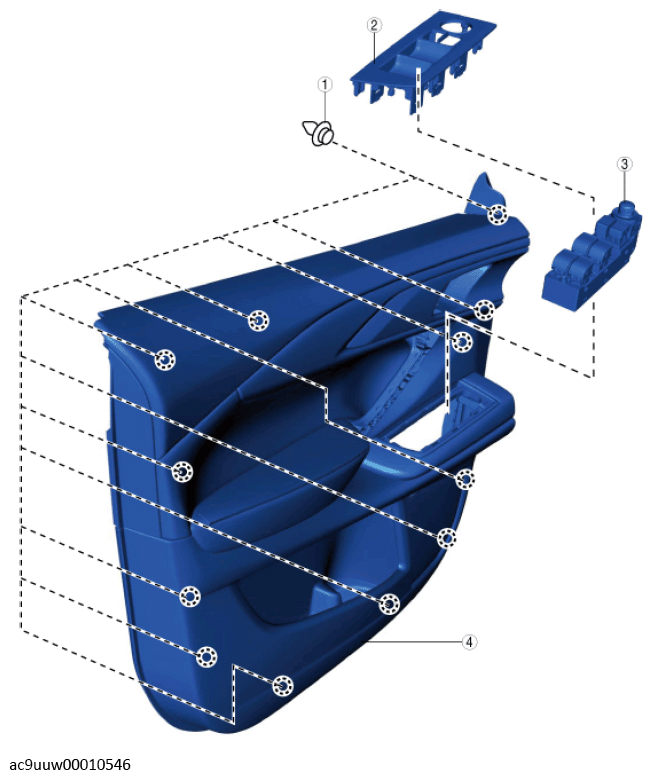

Fig 1: Disassembling/Assembling Front Door Trim Components (Driver-Side)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fastener
2	Switch panel
3	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
4	Front door trim
