System Wiring Diagram (Dynamic Stability Control (DSC))

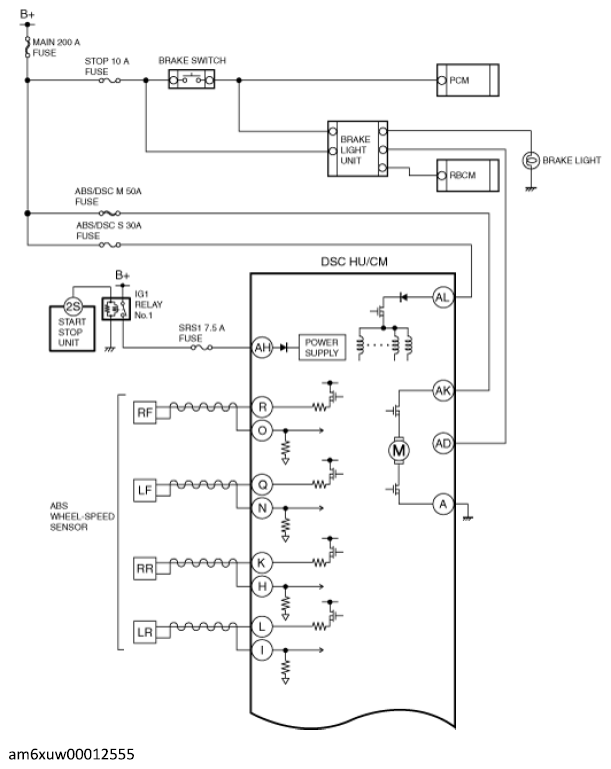

Fig 1: Dynamic Stability Control System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

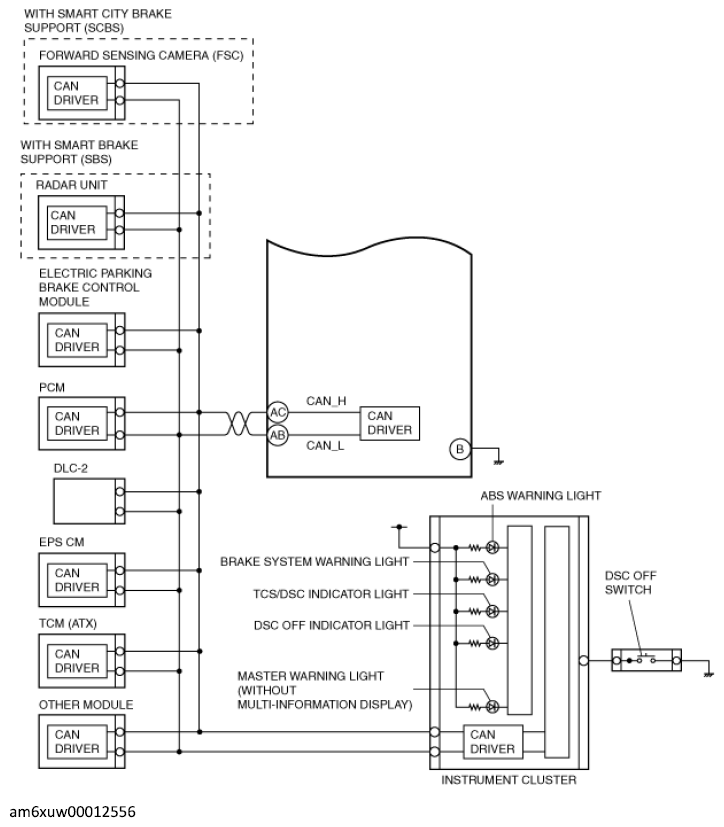

Fig 2: Dynamic Stability Control System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
