Water Hose: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner and air hose as a single unit. (See Intake-Air System Removal/Installation .)
  3. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
  4. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  5. Drain the engine coolant. (See Engine Coolant Replacement .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
  8. Add the engine coolant. (See Engine Coolant Replacement .)

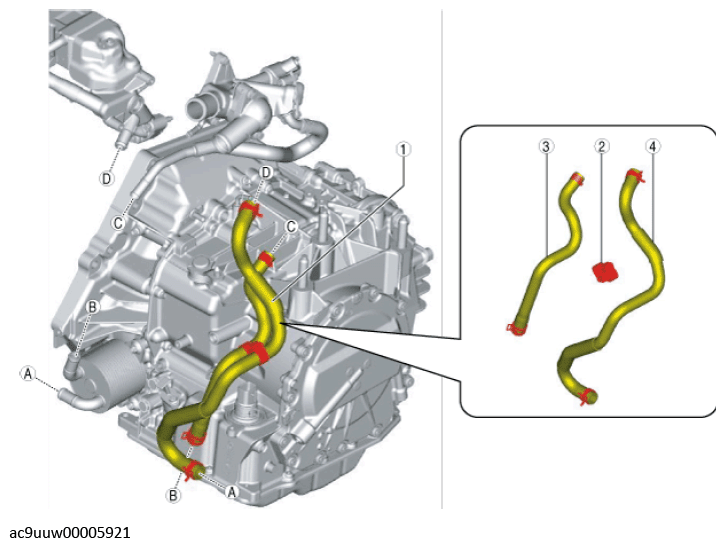

    Fig 1: Oil Cooler Components Location
    G12244772Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Water hose component
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 1 (water pipe side) installation note .)
    (See Water hose No. 2 (water pipe side) installation note .)
    2 Hose clip
    3 Water hose No. 1
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 1 (water pipe side) installation note .)
    4 Water hose No. 2
    (See Water hose No. 1 and No. 2 (oil cooler side) installation note .)
    (See Water hose No. 2 (water pipe side) installation note .)
