Rear Lower Arm Removal/Installation: Notes

WARNING:

Be careful not to allow the coil spring to fly off when removing/installing the coil spring. Otherwise, the coil spring could fly off and cause serious injure or death, or damage to the vehicle.

Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
When working on the left side of the vehicle, disconnect the auto leveling sensor link. (With auto leveling sensor)

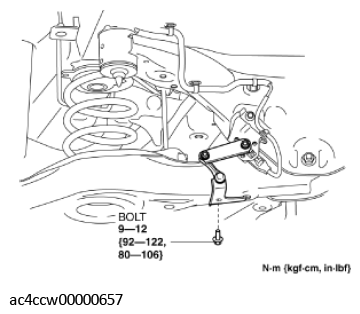

Fig 1: Auto Leveling Sensor Link And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal. (See Suspension Links Installation Note .)
Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

Perform the headlight auto leveling system initial setting. (With auto leveling sensor) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)

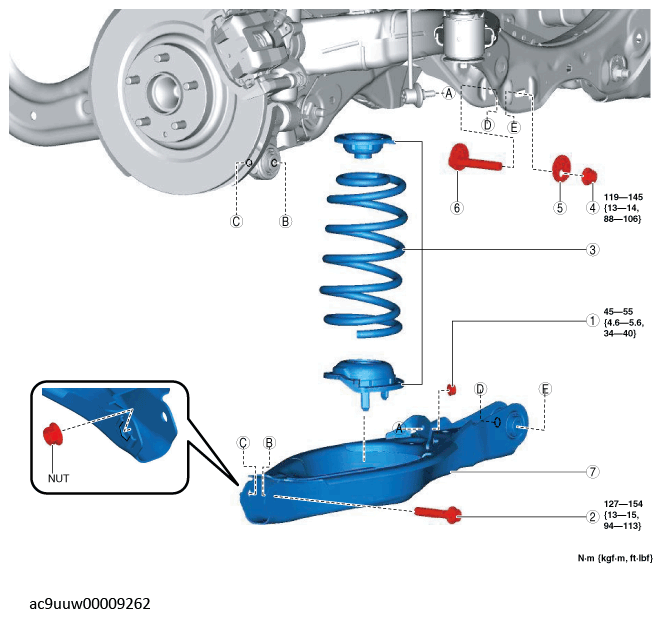

Fig 2: Rear Lower Arm Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear stabilizer control link lower side nut
2	Rear lower arm outer bolt (See Rear Lower Arm Outer Bolt Removal Note .) (See Rear Lower Arm Outer Bolt Installation Note .)
3	Rear coil spring component (See REAR COIL SPRING REMOVAL/INSTALLATION .)
4	Rear lower arm inner nut (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)
5	Cam plate (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)
6	Adjusting cam bolt (See Adjusting Cam Bolt, Cam Plate and Rear Lower Arm Inner Nut Installation Note .)
7	Rear lower arm
