Windshield Washer Switch

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.

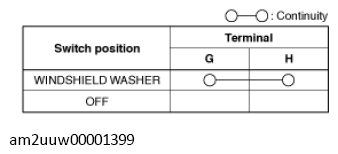

    Fig 1: Wiper And Washer Switch Terminals Continuity Chart
    G11430530Courtesy of MAZDA MOTORS CORP.

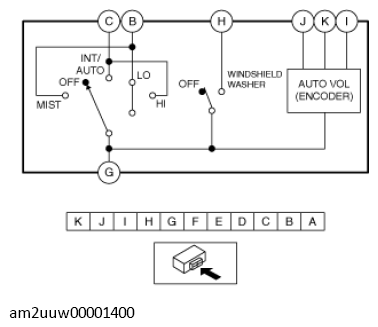

    Fig 2: Checking Wiper And Washer Switch Terminals Continuity Chart
    G11430531Courtesy of MAZDA MOTORS CORP.
