No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the No. 1 engine mount rubber installation bolt (front crossmember side) shown in the figure.
2WD

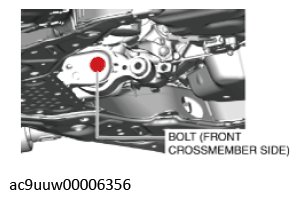

Fig 1: Engine Mount Rubber Installation Bolt (Front Crossmember Side; 2WD)
Courtesy of MAZDA MOTORS CORP.

AWD

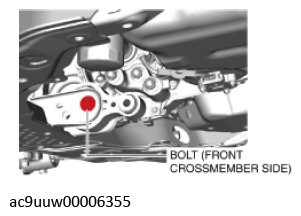

Fig 2: Engine Mount Rubber Installation Bolt (Front Crossmember Side; AWD)
Courtesy of MAZDA MOTORS CORP.
Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
