Vehicle Interior, Center

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the rear cooler duct. (See REAR COOLER DUCT REMOVAL/INSTALLATION .)
  4. Disconnect the connector from the keyless antenna.

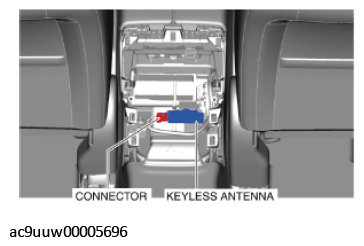

    Fig 1: Keyless Antenna Connector
    G11432730Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.
  5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

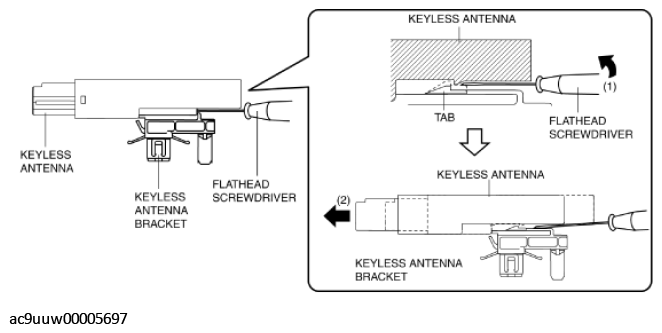

    Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Into Keyless Antenna Bracket
    G11432731Courtesy of MAZDA MOTORS CORP.
  6. Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
  7. Remove the keyless antenna from the keyless antenna bracket.
  8. Remove the keyless antenna bracket.

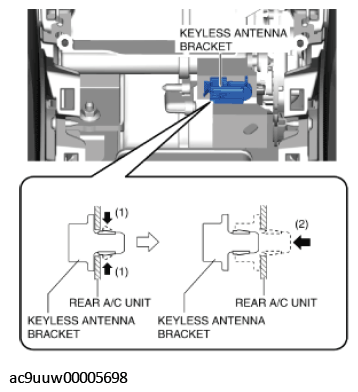

    Fig 3: Removing Keyless Antenna From Keyless Antenna Bracket
    G11432732Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
