Front Door Lock Actuator Inspection

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass removal preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    2. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    3. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    4. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Apply battery positive voltage and connect the ground to the front door lock actuator terminals as indicated in the table below and verify the operation condition.

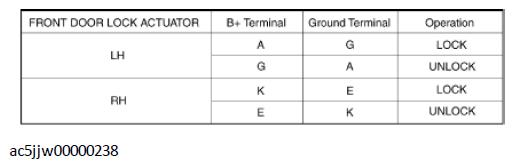

Fig 1: Front Door Lock Actuator Terminals Continuity Chart
G11432668Courtesy of MAZDA MOTORS CORP.

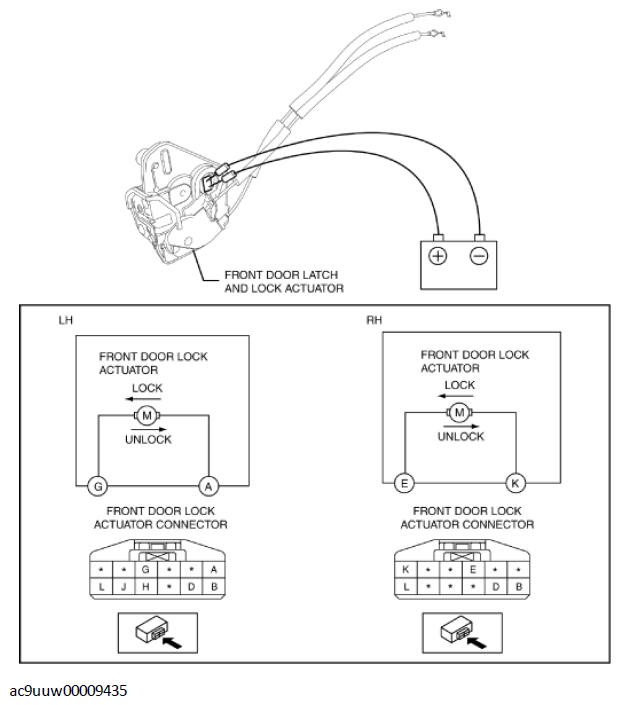

Fig 2: Front Door Lock Actuator Circuit Diagram
G11432669Courtesy of MAZDA MOTORS CORP.
