Heel Cushion Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
    4. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    5. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    7. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

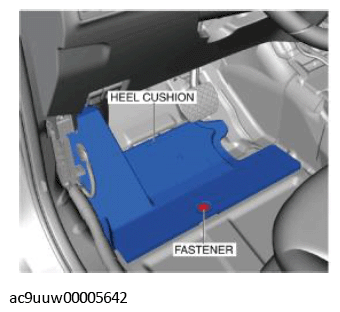

    Fig 1: Heel Cuhion And Fastener
    G11434955Courtesy of MAZDA MOTORS CORP.
  5. Pull the heel cushion in the direction of the arrow and remove it.

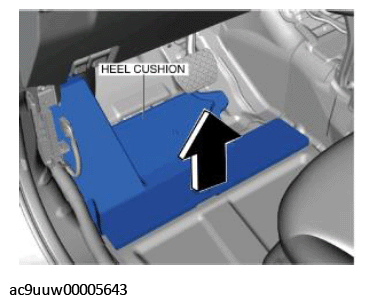

    Fig 2: Pulling Heel Cushion
    G11434956Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
