Floor Covering Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

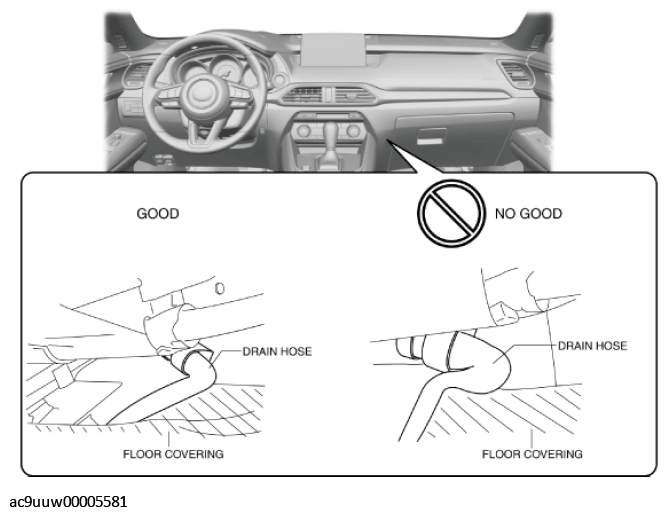

When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.

Place the floor covering with it aligned to the body.
Before installing the side wall, verify that the A/C unit drain hose is not deformed.

Fig 1: Caution - When Installing Floor Covering, Floor Covering May Press A/C Unit Drain Hose And Deform It
Courtesy of MAZDA MOTORS CORP.

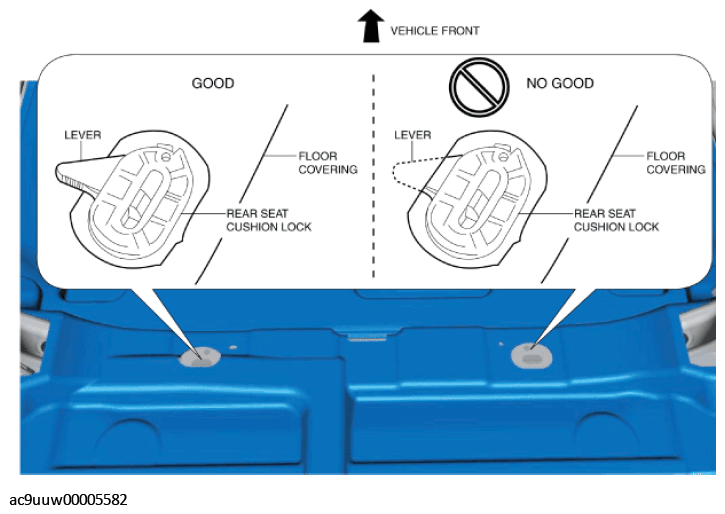

- If the rear seat cushion lock lever is covered by the floor mat, the rear seat cushion lock cannot be released. When installing the floor mat, do not cover the rear seat cushion lock lever with the mat.
Fig 2: Caution - If Rear Seat Cushion Lock Lever Is Covered By Floor Mat, Rear Seat Cushion Lock Cannot Be Released
Courtesy of MAZDA MOTORS CORP.
