Front Oil Seal Replacement: Notes

Special Service Tool (SST)

1.: Mazda SST number
2.: Global SST number
1: 49 UN20 5072 2: 205-072 Holder	Courtesy of MAZDA MOTORS CORP.	1: 49 B011 105 2: - Adapter	Courtesy of MAZDA MOTORS CORP.	1: 49 H010 401 2: - Oil seal installer	Courtesy of MAZDA MOTORS CORP.

1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
2. Remove the front splash shield (RH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
3. Remove the drive belt. (See Drive Belt Removal/Installation .)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

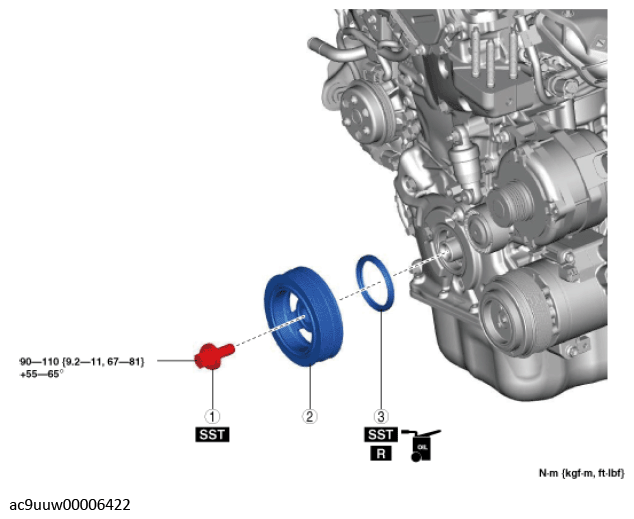

   Fig 1: Front Oil Seal Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   COMPONENT DESCRIPTION



   1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note .) (See Crankshaft Pulley Lock Bolt Installation Note .)
   2	Crankshaft pulley
   3	Front oil seal (See Front Oil Seal Removal Note .) (See Front Oil Seal Installation Note .)
