No. 1 Engine Mount (AWD): Notes

NOTE:

When removing the No. 1 engine mount rubber for AWD vehicles, loosen the front crossmember installation bolts and perform the procedure with the front crossmember component lowered to 15-20 mm {0.60-0.78 in}.
When removing the No. 1 engine mount bracket for AWD vehicles, perform the procedure with the front crossmember component and transfer completely removed from the vehicle.

Remove the front under cover No. 1 and front under cover No. 2. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the front splash shield. (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT .)

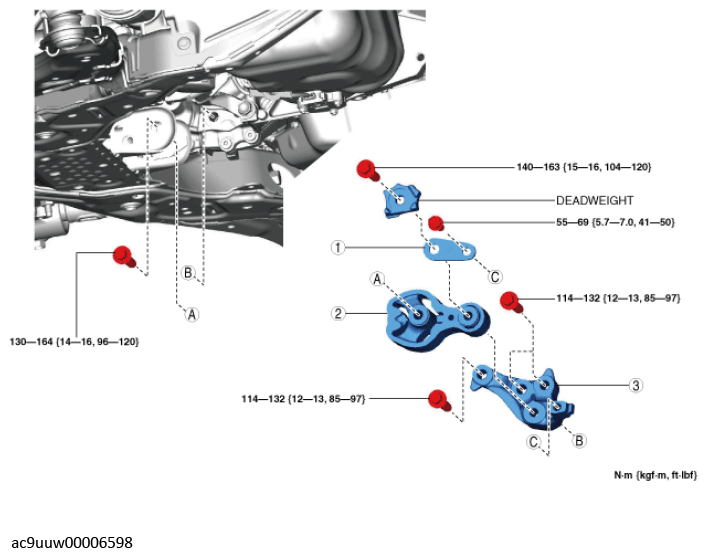

Fig 1: Engine Mount Components With Torque Specification

G12243923

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bracket plate (See No. 1 engine mount rubber, bracket plate installation note (AWD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount rubber removal note (AWD) .) (See No. 1 engine mount rubber, bracket plate installation note (AWD) .)
3	No. 1 engine mount bracket (See No. 1 engine mount bracket removal note (AWD) .) (See No. 1 engine mount bracket installation note (AWD) .)
