Mirror Glass Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION
.)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION
.)

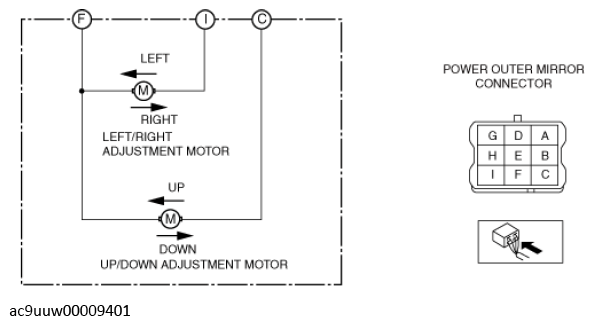

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
Courtesy of MAZDA MOTORS CORP.
- If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.
| Mirror Operation Direction |
Battery Positive Voltage Connect Terminal |
Ground Connect Terminal |
| Up |
C |
F |
| Down |
F |
C |
| Left |
I |
F |
| Right |
F |
I |
