Without Sensor Cover

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Loosen the screw.

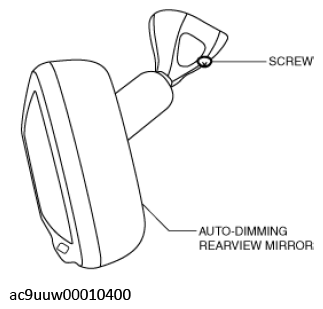

Fig 1: Auto-Dimming Rearview Mirror And Screw
Courtesy of MAZDA MOTORS CORP.
Remove cover No. 1 in the direction of the arrow shown in the figure.

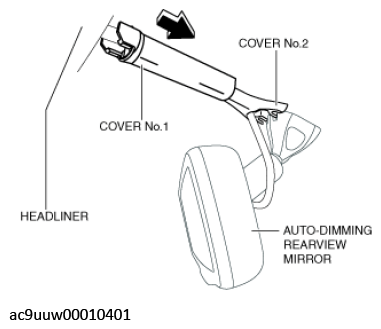

Fig 2: Removing Cover No. 1
Courtesy of MAZDA MOTORS CORP.
Detach the tabs while pressing cover No. 2 in the direction of the arrow (1) shown in the figure, then remove cover No. 2 in the direction of the arrow (2).

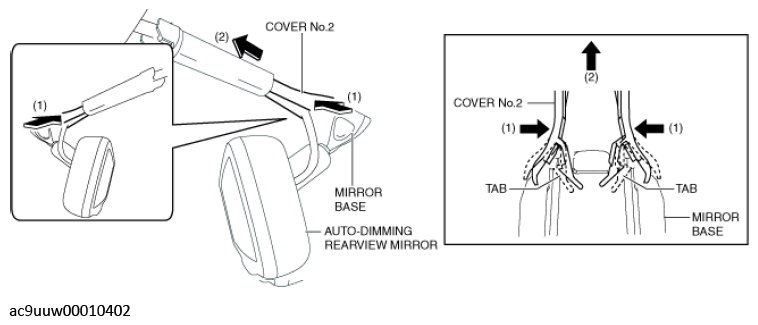

Fig 3: Pressing Cover No. 2
Courtesy of MAZDA MOTORS CORP.
Disconnect the auto-dimming rearview mirror connector.

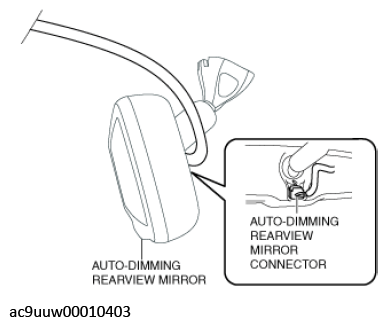

Fig 4: Auto-Dimming Rearview Mirror Connector
Courtesy of MAZDA MOTORS CORP.
Remove the auto-dimming rearview mirror in the direction of arrow from the mirror base.

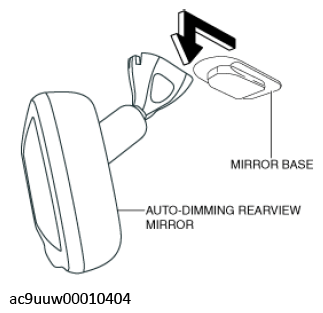

Fig 5: Removing Auto-Dimming Rearview Mirror
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
