Headliner Removal/Installation: Notes

NOTE:

There are two types of headliner. Verify the headliner shape before performing the procedures.

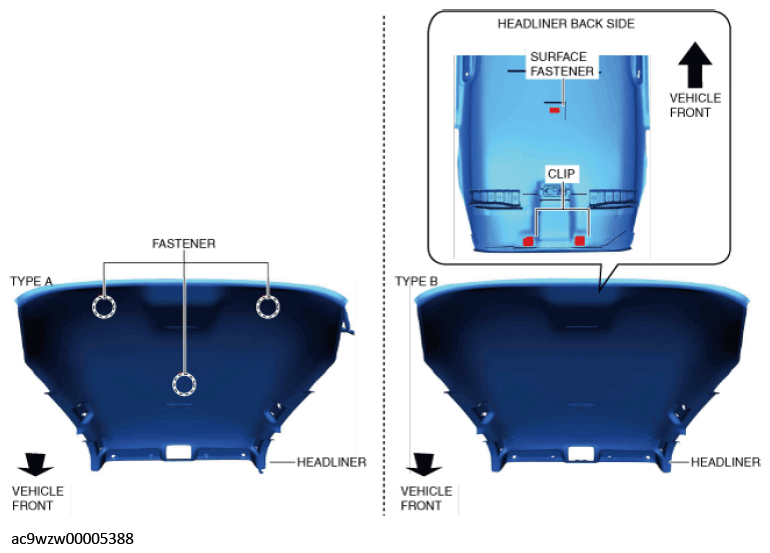

Fig 1: Headliner Types

G12266406

Courtesy of MAZDA MOTORS CORP.
