Oil Cooler: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the ATF. (See Automatic Transaxle Fluid (ATF) Replacement .)
- Drain the engine coolant. (See Engine Coolant Replacement .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See Engine Coolant Replacement .)
- Add the ATF. (See Automatic Transaxle Fluid (ATF) Replacement .)
- Perform the "Mechanical System Test". (See Mechanical System Test .)

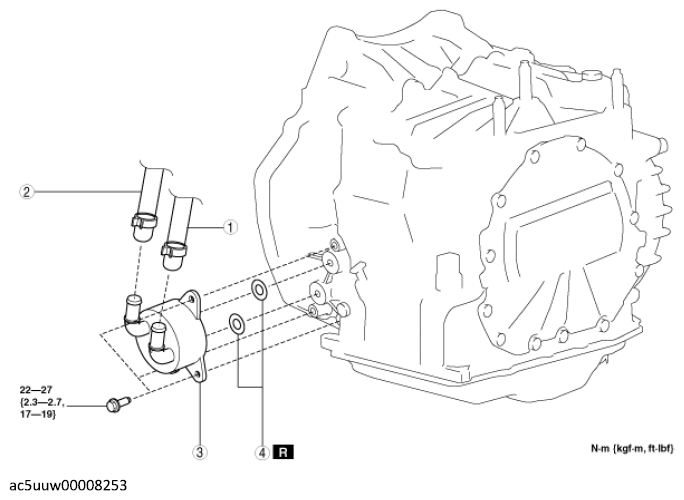

Fig 1: Water Hose No. 1 Or No. 2, Water-Cooled Oil Cooler, O-Rings And Bolt With Torque Specification
COMPONENT DESCRIPTION
| 1 | Water hose No. 1 (See Water hose No. 1 and No. 2 (oil cooler side) installation note .) |
| 2 | Water hose No. 2 (See Water hose No. 1 and No. 2 (oil cooler side) installation note .) |
| 3 | Water-cooled oil cooler |
| 4 | O-rings |
