Front Stabilizer Bracket Removal Note

  1. If the front stabilizer bracket cannot be removed by hand, remove it using a vise.

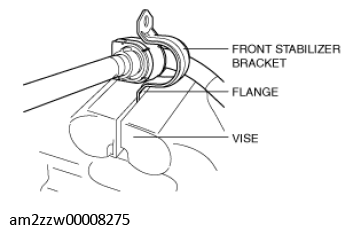

    Fig 1: Removing Front Stabilizer Bracket Using Vise
    G11279016Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The front stabilizer bracket may be deformed if it is removed using a vise. When removing the front stabilizer bracket using a vise, secure the front stabilizer bracket flange to the vise as shown in the figure, then remove it.
  2. Remove the front stabilizer bracket.
