Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot

Fig 1: Caution For Inserting Rag Between Boot And Metallic Cover

Courtesy of MAZDA MOTORS CORP.

Remove the floor under cover No. 1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the fasteners in the order shown in the figure below.

Fig 2: Floor Under Cover Fasteners Loosening Sequence
Courtesy of MAZDA MOTORS CORP.
Remove the insulator.
Remove the following parts:
1. Brace bar

  Fig 3: Tunnel Member, Brace Bar And Bolts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
2. Tunnel member
For SKYACTIV-G 2.5 (With cylinder deactivation) vehicles, perform the following procedure.
(1) Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (2) Remove the TWC from the mount rubber.

Fig 4: Exhaust Shutter Valve, Connector, TWC And Mount Rubber
Courtesy of MAZDA MOTORS CORP.

(3) Disconnect the exhaust shutter valve connector. (4) Disconnect the wiring harness clips. (5) Remove the nut.

Fig 5: TWC, Bracket, HO2S And Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.

(6) Disconnect the bracket from the TWC. (7) Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .) (8) Suspend the TWC using a cable as shown in the figure.

Fig 6: Suspending TWC Using Cable
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure.
Install in the reverse order of removal.

Perform a road test and verify that there is no abnormal vibration or noise.

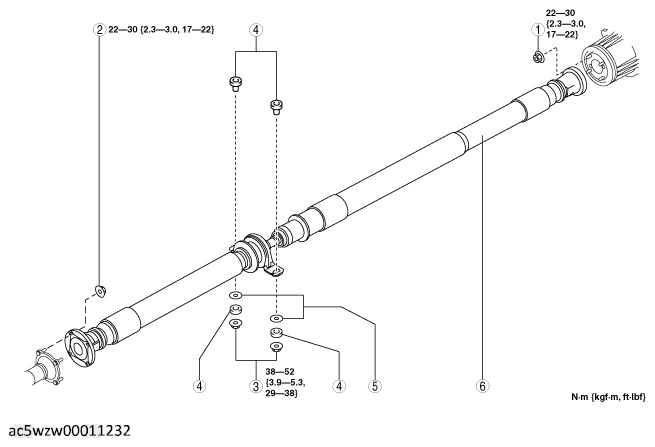

Fig 7: Propeller Shaft Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Nut (rear) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
2	Nut (front) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
3	Nut (center bearing support) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
4	Bush, spacer
5	Washer
6	Propeller shaft (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
