Air Bag System Location Index (Two-Step Deployment Control System)

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

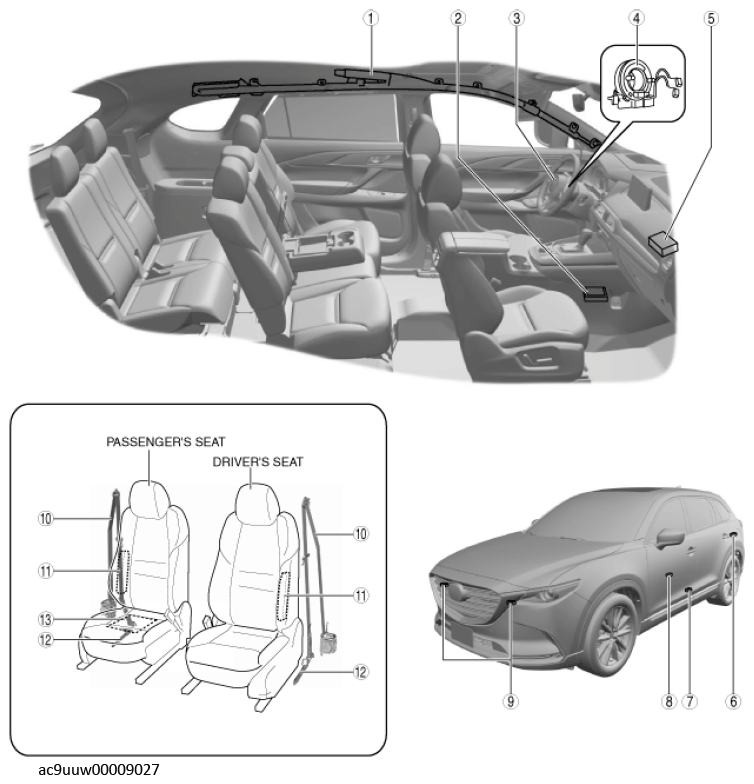

Fig 1: Air Bag System Components Location - Two-Step Deployment Control System

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Curtain air bag module (See Curtain Air Bag Module Removal/Installation (Two-Step Deployment Control System) .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
2	SAS control module (See SAS Control Module Removal/Installation (Two-Step Deployment Control System) .) (See SAS Control Module Configuration (Using Read/Write Function) (Two-Step Deployment Control System) .) (See SAS Control Module Configuration (Using As-Built Data) (Two-Step Deployment Control System) .)
3	Driver-side air bag module (See Driver-Side Air Bag Module Removal (Two-Step Deployment Control System) .) (See Driver-Side Air Bag Module Installation (Two-Step Deployment Control System) .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
4	Clock spring (See Clock Spring Removal/Installation (Two-Step Deployment Control System) .) (See Clock Spring Adjustment (Two-Step Deployment Control System) .) (See Clock Spring Inspection (Two-Step Deployment Control System) .)
5	Passenger-side air bag module (See Passenger-Side Air Bag Module Removal/Installation (Two-Step Deployment Control System) .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
6	Side air bag sensor No. 2 (See Side Air Bag Sensor No. 2 Removal/Installation (Two-Step Deployment Control System) .)
7	Side air bag sensor No. 1 (See Side Air Bag Sensor No. 1 Removal/Installation (Two-Step Deployment Control System) .)
8	Pressure sensor (See Pressure Sensor Removal/Installation (Two-Step Deployment Control System) .)
9	Crash zone sensor (See Crash Zone Sensor Removal/Installation (Two-Step Deployment Control System) .)
10	Pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
11	Side air bag module (See Side Air Bag Module Removal/Installation (Two-Step Deployment Control System) .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
12	Lap pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See Air Bag Module And Pre-tensioner Seat Belt Deployment Procedures (Two-Step Deployment Control System) .)
13	Occupant classification sensor (See Occupant Classification Sensor Removal/Installation (Two-Step Deployment Control System) .) (See Occupant Classification Sensor Calibration (Two-Step Deployment Control System) .) (See Occupant Classification Sensor Inspection (Two-Step Deployment Control System) .)
