Passenger-side Front Occupancy Sensor

WARNING: This page is about a different car, the 2018 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the applicable service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
If the sliding mechanisms on both sides are not locked after assembling the front seat, the front seat will operate accidentally while the vehicle is driven, which could result in serious injury. After assembling the front seat, shake it up and down and verify that the sliding mechanism on the both sides are locked.

Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the passenger-side front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Disconnect the occupancy sensor connector.

Fig 1: Occupancy Sensor Connector - Passenger Side Front Seat
Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the occupancy sensor terminals is as indicated in the table.

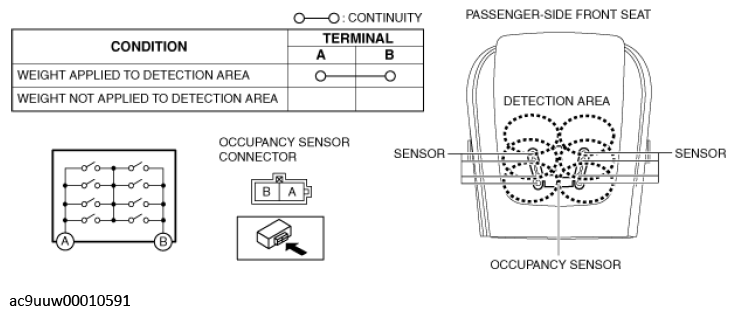

Fig 2: Checking Continuity Between Occupancy Sensor Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the passenger-side front seat cushion pad. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
