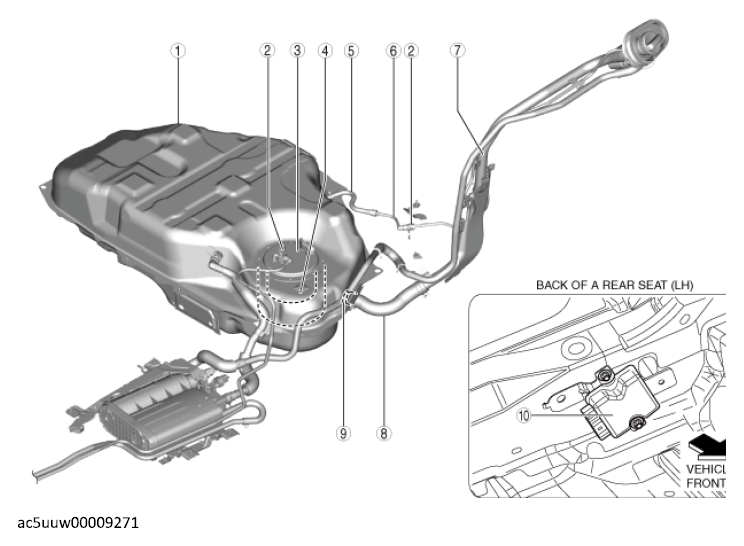

Fuel Tank Side: 2WD
COMPONENT DESCRIPTION
| 1 | Fuel tank (See Fuel Tank Removal/Installation .) (See Fuel Tank Inspection .) |
| 2 | Quick release connector (See Quick Release Connector (Fuel System) Removal/Installation .) |
| 3 | Fuel pump unit (See Fuel Pump Unit Removal/Installation .) (See Fuel Pump Unit Disassembly/Assembly .) (See Fuel Pump Unit Inspection .) |
| 4 | Fuel filter (high-pressure) (See Fuel Filter (High-pressure) Removal/Installation .) |
| 5 | Breather hose (See Fuel Tank Removal/Installation .) |
| 6 | Breather pipe (See Fuel Tank Removal/Installation .) |
| 7 | Fuel-filler pipe (See Fuel-filler Pipe Removal/Installation .) |
| 8 | Joint hose (See Fuel Tank Removal/Installation .) |
| 9 | Non-return valve (See Non-return Valve Inspection .) |
| 10 | Fuel pump control module (See Fuel Pump Control Module Removal/Installation .) (See Fuel Pump Control Module Inspection .) |
