Compression Pressure

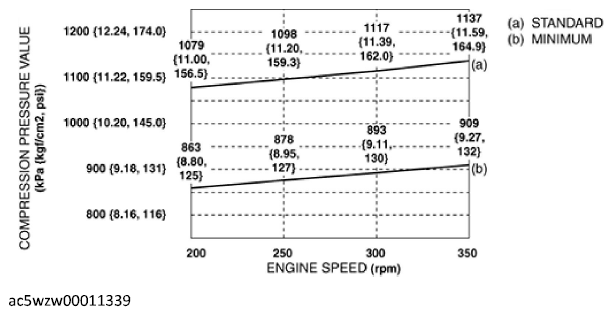

Fig 1: Compression Pressure Value Graph
G12188426Courtesy of MAZDA MOTORS CORP.
  1. Standard: Refer to the graph.
  2. Minimum: Refer to the graph.
  3. Maximum difference between cylinders: 149 kPa {1.52 kgf/cm 2 , 21.6 psi} [250 RPM]
