Intake Manifold Installation Note

  1. Install the intake manifold.
  2. Connect the wiring harness clip to the intake manifold shown in the figure below.

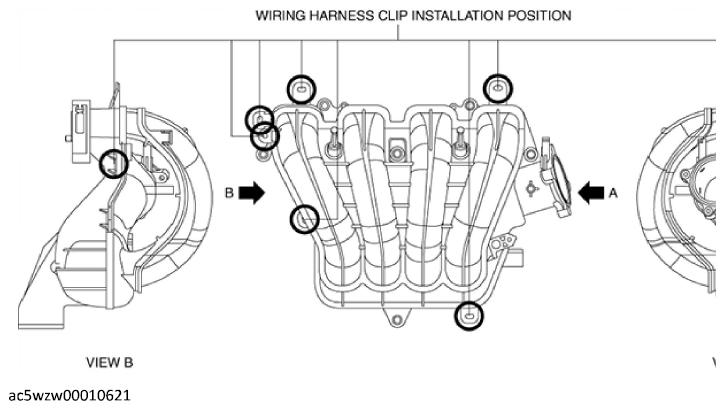

    Fig 1: Wiring Harness Clip Installation Position
    G12184242Courtesy of MAZDA MOTORS CORP.
