Air Cleaner Case Installation Note

  1. Install the air cleaner case as shown in the figure below.

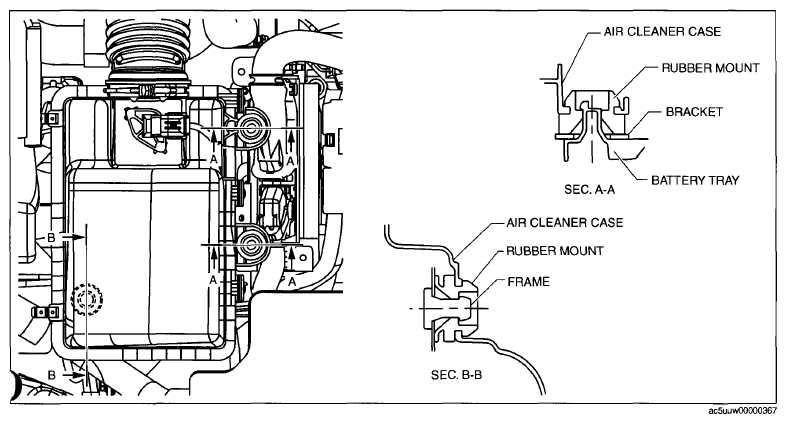

    Fig 1: Installing Air Cleaner Case
    G09074404Courtesy of MAZDA MOTORS CORP.
