Joint Hose Installation Note

  1. Install the joint hose as shown in the figure.

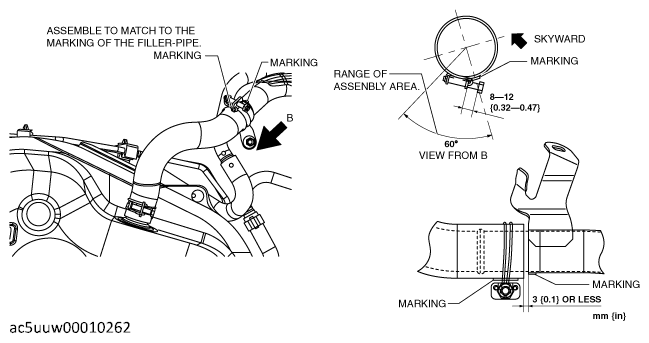

    Fig 1: Checking Joint Hose Installation Position
    G12184343Courtesy of MAZDA MOTORS CORP.
