Exhaust System Removal/Installation: AWD: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.
Remove the insulator. (See Exhaust system insulator removal/installation .)
Install in the reverse order of removal.

Step 1

Fig 1: Main Silencer, Ho2S, Wiring Harness And TWC And Nuts With Torque Specification - Step 1

Courtesy of MAZDA MOTORS CORP.

Step 2

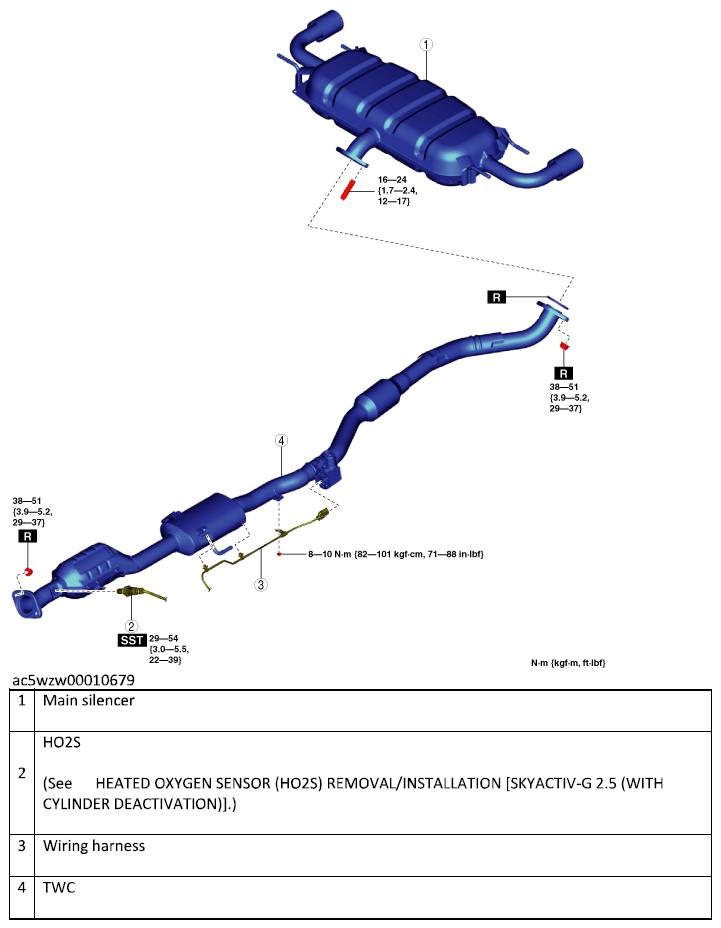

Fig 2: Main Silencer, HO2S, Wiring Harness And TWC And Nuts With Torque Specification - Step 2

Courtesy of MAZDA MOTORS CORP.
