Exhaust System Removal/Installation: 2WD: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.
  3. Remove the insulator. (See Exhaust system insulator removal/installation .)
  4. Install in the reverse order of removal.

Step 1

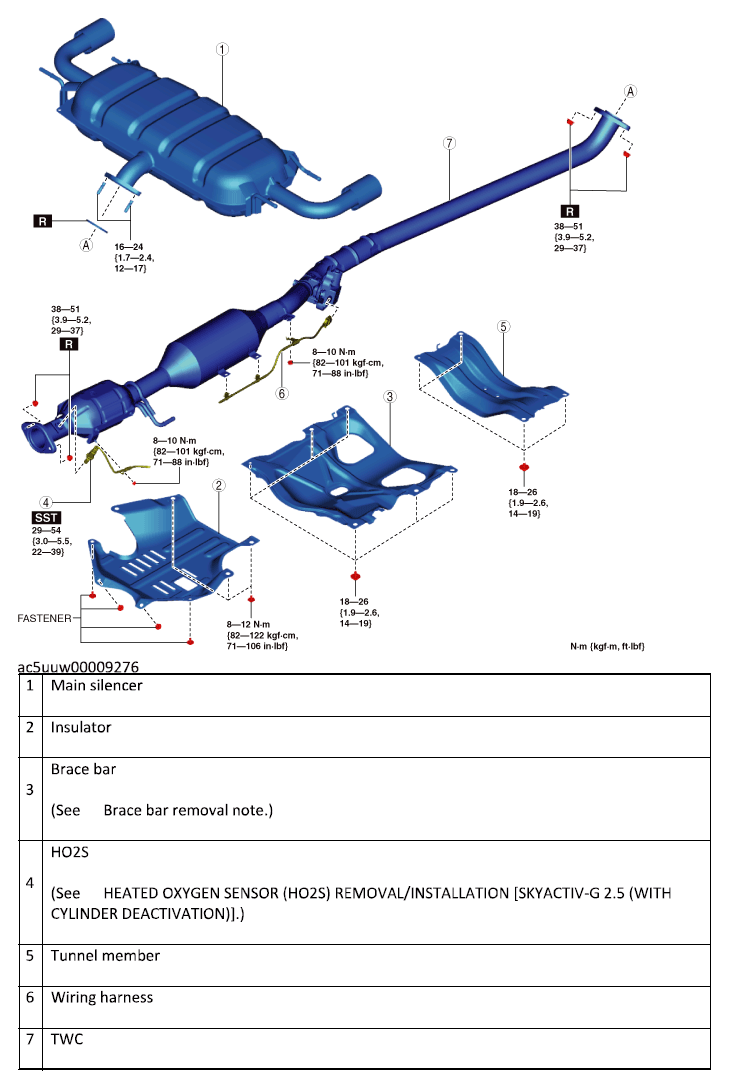

Fig 1: Exhaust System Components With Torque Specification - Step 1
G12184366Courtesy of MAZDA MOTORS CORP.

Step 2

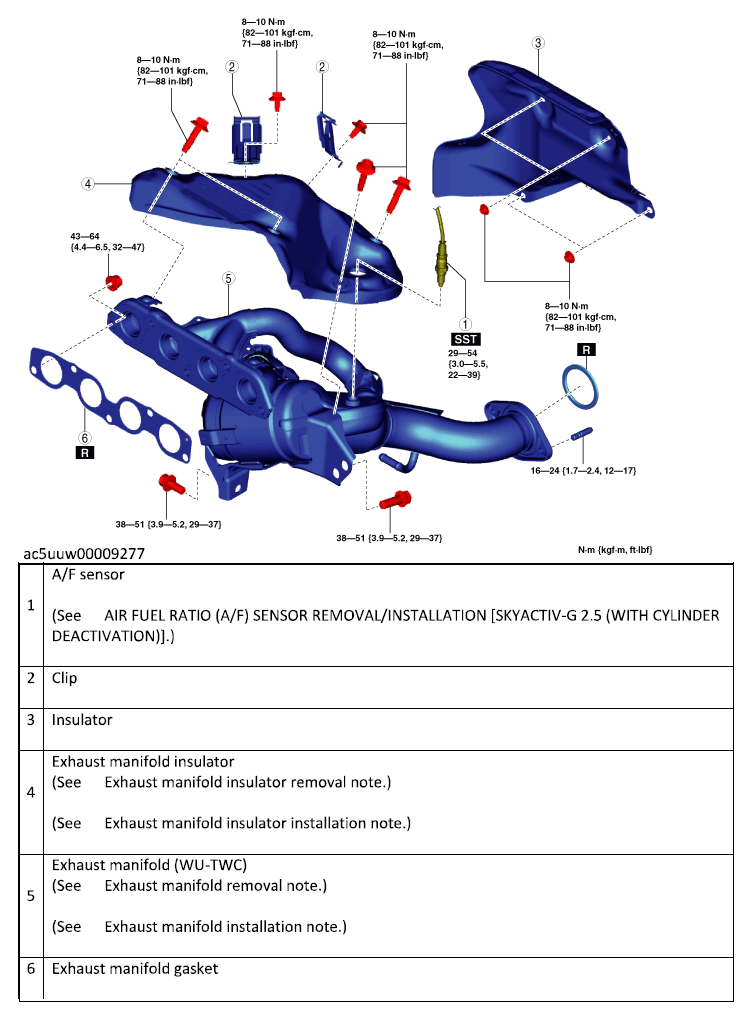

Fig 2: Exhaust System Components With Torque Specification - Step 2
G12184367Courtesy of MAZDA MOTORS CORP.
