Engine Oil Solenoid Valve Removal/Installation: Notes
REPLACEMENT PART DESCRIPTION
| Bolt Quantity: 3 Location of use: Engine oil solenoid valve |
Gasket Quantity: 1 Location of use: Engine oil solenoid valve |
OIL AND CHEMICAL TYPE
| Silicone sealant Type: TB1207B or equivalent |
Engine oil Type: Recommended oil |
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.

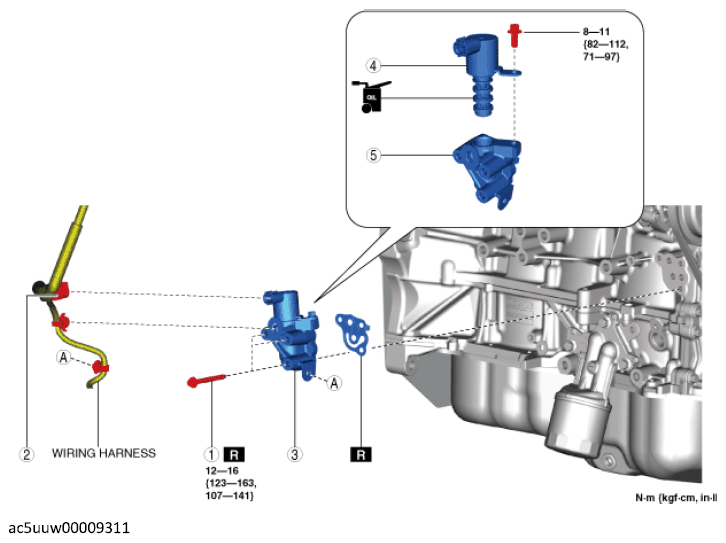

COMPONENT DESCRIPTION1 Bolt 2 Engine oil solenoid valve connector 3 Engine oil solenoid valve component 4 Engine oil solenoid valve
(See Engine Oil Solenoid Valve Removal Note .)
(See Engine Oil Solenoid Valve Installation Note .)5 Spacer
