Generator Disassembly/Assembly (VIN M): Notes

Assemble in the reverse order of disassembly.

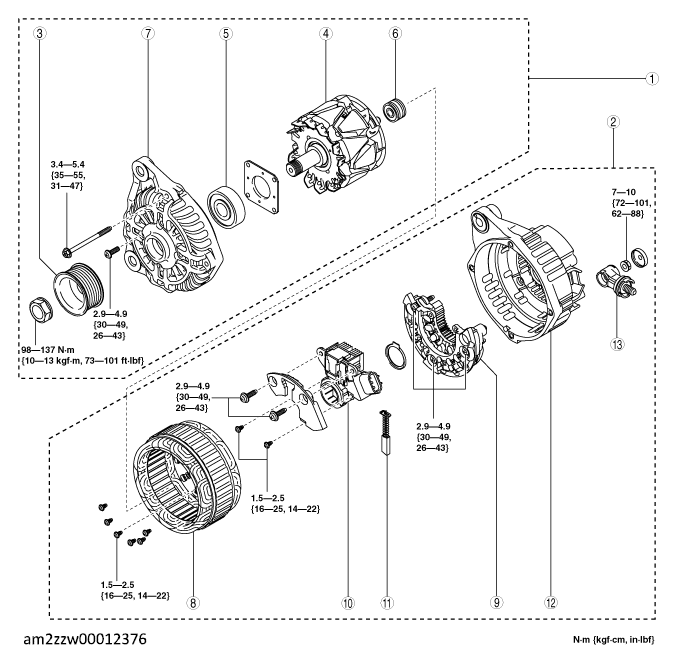

Fig 1: Exploded View Of Generator With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Brush holder
11	Brush (See Brush Disassembly Note .) (See Brush Assembly Note .)
12	Rear cover
13	Terminal B component
