System Wiring Diagram (Dynamic Stability Control (DSC))

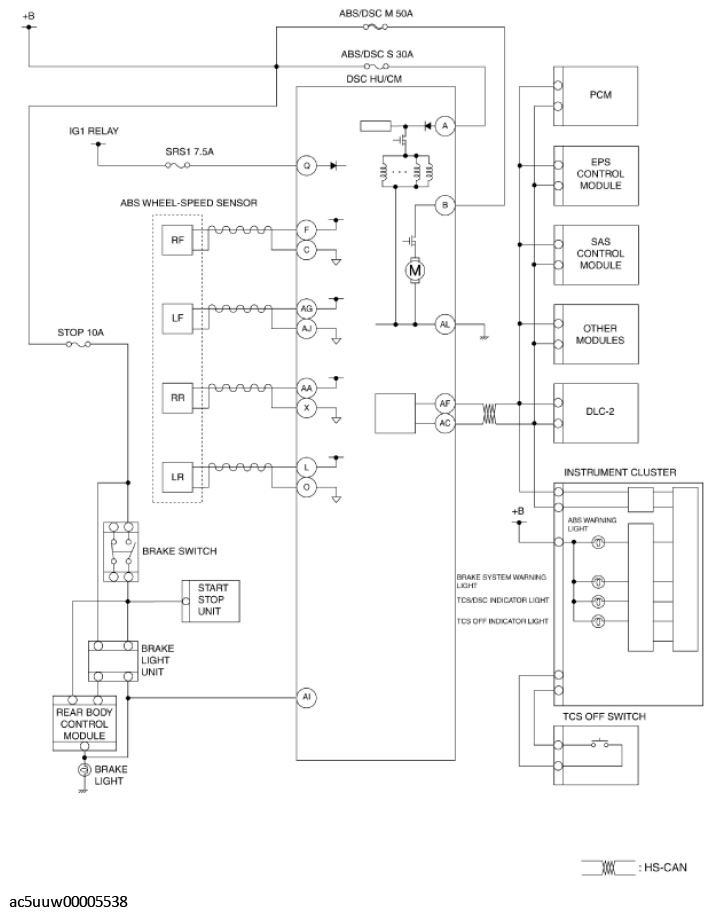

Fig 1: Dynamic Stability Control System Wiring Diagram

G11427029

Courtesy of MAZDA MOTORS CORP.
