Position Memory Control Module Inspection

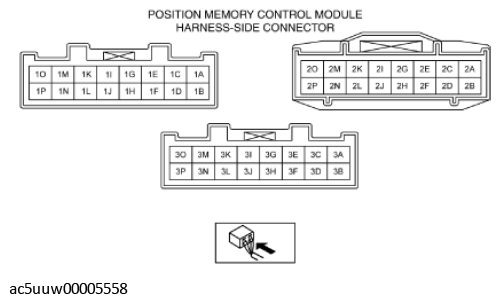

- Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item (s) " and related wiring harnesses.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the position memory control module. (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .)
Terminal Voltage Table (Reference)
TERMINAL VOLTAGE REFERENCETerminal Signal name Connected to Measured condition Voltage (V) Inspection item(s) 1C CAN_H CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible. 1E CAN_L CAN system related module Terminal used for communication therefore determination based on terminal voltage is not possible. 1G Ignition power supply METER1 10A fuse Ignition switched ON (engine off) B+ - METER1 10A fuse
- Related wiring harness
Ignition switched OFF (LOCK) 1.0 or less 1H Signal GND Body ground Under any condition 1.0 or less Related wiring harness 1J Power GND Body ground Under any condition 1.0 or less Related wiring harness 1M Power supply ROOM 15A fuse Under any condition B+ - ROOM 15A fuse
- Related wiring harness
1O Power supply P.SEAT D 30A fuse Under any condition B+ - P.SEAT D 30A fuse
- Related wiring harness
2A Slide switch input (forward) Driver-side power seat switch Press the slide switch to forward 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2B Slide switch input (backward) Driver-side power seat switch Press the slide switch to backward 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2C Tilt switch input (up) Driver-side power seat switch Press the tilt switch to up 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2D Tilt switch input (down) Driver-side power seat switch Press the tilt switch to down 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2E Lift switch input (up) Driver-side power seat switch Press the lift switch to up 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2F Lift switch input (down) Driver-side power seat switch Press the lift switch to down 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2G Recliner switch input (forward) Driver-side power seat switch Press the recliner switch to forward 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2H Recliner switch input (backward) Driver-side power seat switch Press the recliner switch to backward 1.0 or less - Driver-side power seat switch
- Related wiring harness
Other 4.8 or more 2I Signal GND input Driver-side power seat switch Under any condition 1.0 or less - Driver-side power seat switch
- Related wiring harness
2J Signal GND input Position memory switch Under any condition 1.0 or less - Position memory switch
- Related wiring harness
2K Set switch input Position memory switch Press the set switch 1.0 or less - Position memory switch
- Related wiring harness
Other 4.8 or more 2L Memory switch 1 input Position memory switch Press the memory switch 1 1.0 or less - Position memory switch
- Related wiring harness
Other 4.8 or more 2M Memory switch 2 input Position memory switch Press the memory switch 2 1.0 or less - Position memory switch
- Related wiring harness
Other 4.8 or more 3A Slide motor output (forward) Slide motor While slide motor is moving to forward B+ - Slide motor
- Related wiring harness
Other 1.0 or less 3B Slide motor output (backward) Slide motor While slide motor is moving to backward B+ - Slide motor
- Related wiring harness
Other 1.0 or less 3C Tilt motor output (up) Tilt motor While tilt motor is moving to up B+ - Tilt motor and position sensor
- Related wiring harness
Other 1.0 or less 3D Tilt motor output (down) Tilt motor While tilt motor is moving to down B+ - Tilt motor and position sensor
- Related wiring harness
Other 1.0 or less 3E Lift motor output (up) Lift motor While lift motor is moving to up B+ - Lift motor and position sensor
- Related wiring harness
Other 1.0 or less 3F Lift motor output (down) Lift motor While lift motor is moving to down B+ - Lift motor and position sensor
- Related wiring harness
Other 1.0 or less 3G Recliner motor output (forward) Recliner motor While recliner motor is moving to forward B+ - Recliner motor and position sensor
- Related wiring harness
Other 1.0 or less 3H Recliner motor output (backward) Recliner motor While recliner motor is moving to backward B+ - Recliner motor and position sensor
- Related wiring harness
Other 1.0 or less 3I Slide position sensor power supply Slide position sensor Slide motor moving B+ - Slide position sensor
- Related wiring harnesses
Slide motor stopped 1.0 or less 3J Slide motor pulse Slide position sensor Measure the waveform while driving motor operation using the oscilloscope. High output: 4.8 or more - Slide position sensor
- Related wiring harnesses
Low output: 1.0 or less Slide motor stopped 1.0 or less or 4.8 or more 3K Tilt position sensor power supply Tilt position sensor Tilt motor moving B+ - Tilt motor and position sensor
- Related wiring harnesses
Tilt motor stopped 1.0 or less 3L Tilt motor pulse Tilt position sensor Measure the waveform while driving motor operation using the oscilloscope. High output: 4.8 or more - Tilt motor and position sensor
- Related wiring harnesses
Low output: 1.0 or less Tilt motor stopped 1.0 or less or 4.8 or more 3M Lift position sensor power supply Lift position sensor Lift motor moving B+ - Lift motor and position sensor
- Related wiring harnesses
Lift motor stopped 1.0 or less 3N Lift motor pulse Lift position sensor Measure the waveform while driving motor operation using the oscilloscope. High output: 4.8 or more - Lift motor and position sensor
- Related wiring harnesses
Low output: 1.0 or less Lift motor stopped 1.0 or less or 4.8 or more 3O Recliner position sensor power supply Recliner position sensor Recliner motor moving B+ - Recliner motor and position sensor
- Related wiring harnesses
Recliner motor stopped 1.0 or less 3P Recliner motor pulse Recliner position sensor Measure the waveform while driving motor operation using the oscilloscope. High output: 4.8 or more - Recliner motor and position sensor
- Related wiring harnesses
Low output: 1.0 or less Recliner motor stopped 1.0 or less or 4.8 or more
