NO. 1 BLOWN FUSES (SKYACTIV-G 2.5 - WITH CYLINDER DEACTIVATION)
| 1 |
BLOWN FUSES |
[TROUBLESHOOTING HINTS]

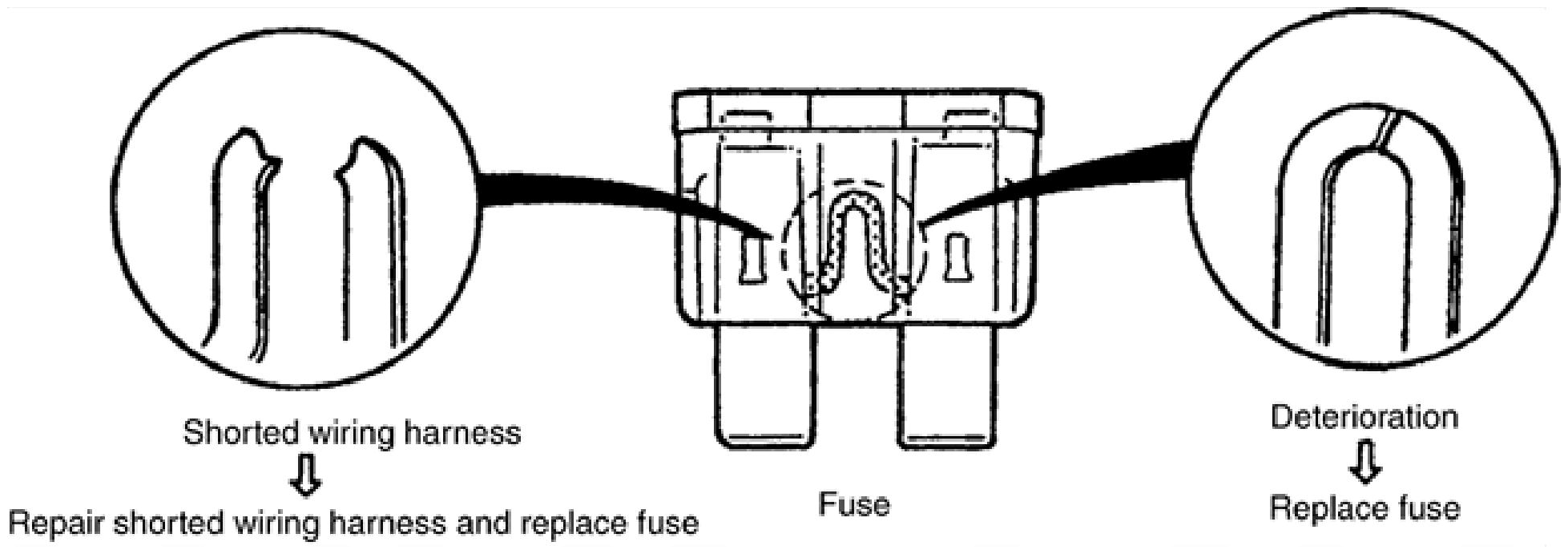

- Inspect condition of fuse.
|
 Courtesy of MAZDA MOTORS CORP.
|
| Damaged Fuse |
Related Wiring Harness |
| MAIN |
- FAN GE fuse
- ADD FAN GE fuse
- FUEL PUMP fuse
- IG2 fuse
- ENG.+B fuse
- ENG.MAIN fuse
- EVVT fuse
- IG1 relay
- ENG.SUB fuse
|
| FAN GE |
|
| ADD FAN GE |
|
| ENGINE.IG1 |
|
| FUEL PUMP |
|
| STR |
|
| IG2 |
|
| ENG.+B |
|
| ENG.MAIN |
|
| ENG.SUB |
|
| EVVT |
- Electric variable valve timing relay
|
| ENGINE2 |
- Electric variable valve timing relay
- HO2S
- A/F sensor
- CMP sensor
- Ignition coil/ion sensor No. 1
- Ignition coil/ion sensor No. 2
- Ignition coil/ion sensor No. 3
- Ignition coil/ion sensor No. 4
|
| ENGINE3 |
- Active air shutter
- Cooling fan relay No. 1
- Cooling fan relay No. 2
- Cooling fan relay No. 3
- Forward Sensing Camera (FSC)
|
| ENGINE4 |
- Purge solenoid valve
- SUB relay
- CV solenoid valve
|
