Rear Housing Installation Note

NOTE:

After applying silicone sealant (TB1217D or equivalent), install the rear housing within 10 min. and then tighten all bolts within 5 min.

Apply silicone sealant (TB1217D or equivalent) to the areas shown in the figure.

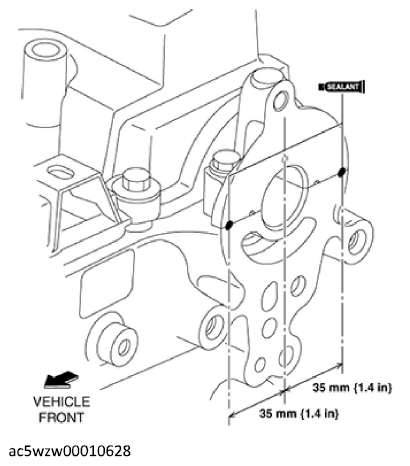

Fig 1: Applying Silicone Sealant (TB1217D Or Equivalent) To Rear Housing Areas
Courtesy of MAZDA MOTORS CORP.

Thickness

3.0-7.0 mm {0.12-0.27 in}
Install the rear housing.
Install the bracket shown in the figure.

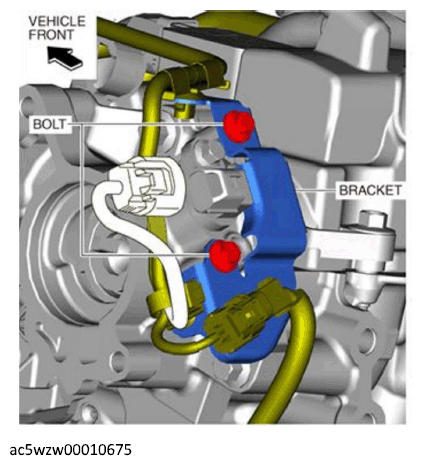

Fig 2: Rear Housing Bracket And Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Connect the exhaust CMP sensor connector.
Install the bracket shown in the figure.

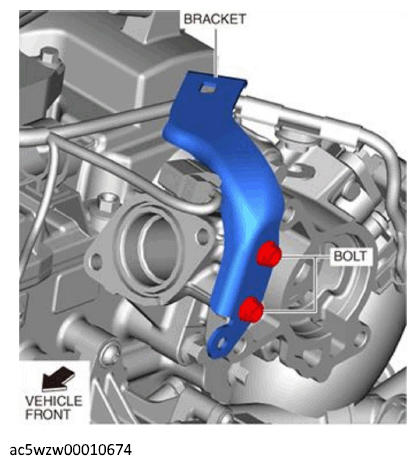

Fig 3: Bracket And Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

16-22 N.m {1.7-2.2 kgf.m, 12-16 ft.lbf}
Connect the hose clips shown in the figure.

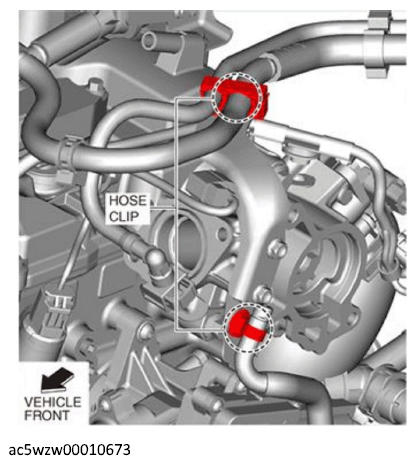

Fig 4: Hose Clips
Courtesy of MAZDA MOTORS CORP.
Install the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)] .)
